Full Frame Jig Kit (Motorcycle Frame Welding Jig / Fixture)

Full Frame Jig Kit (Motorcycle Frame Welding Jig / Fixture)

From: $349.95

To: $416.95

Price as configured: $349.95

Availability: In stock

1 x Frame Jig Neck Fixture (version 2.0)   +$0.00
1 x Frame Jig Axle Plate Fixture   +$0.00
2 x Frame Jig Base Clamp   +$0.00

* Required Fields

Price as configured: $349.95

Description

Details

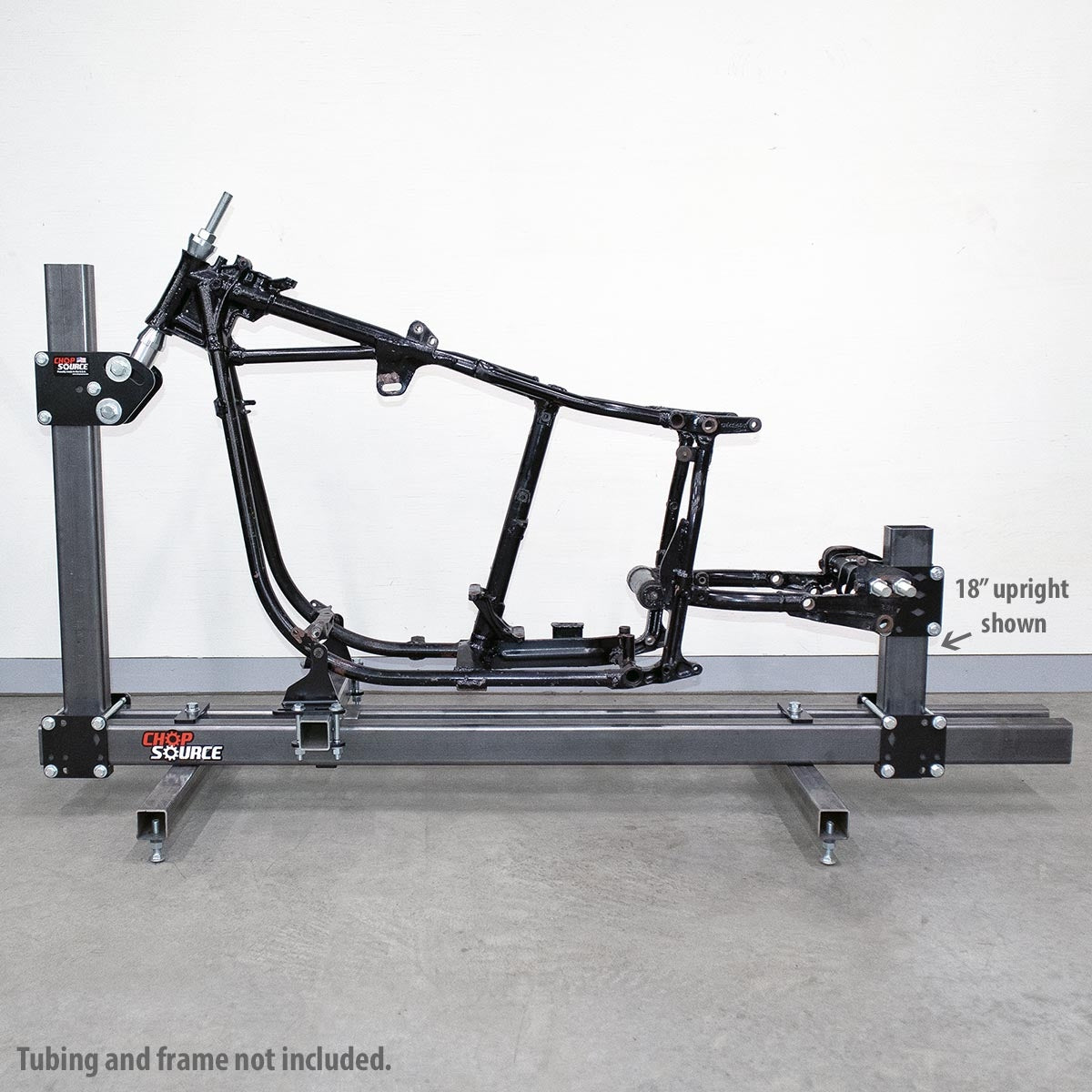

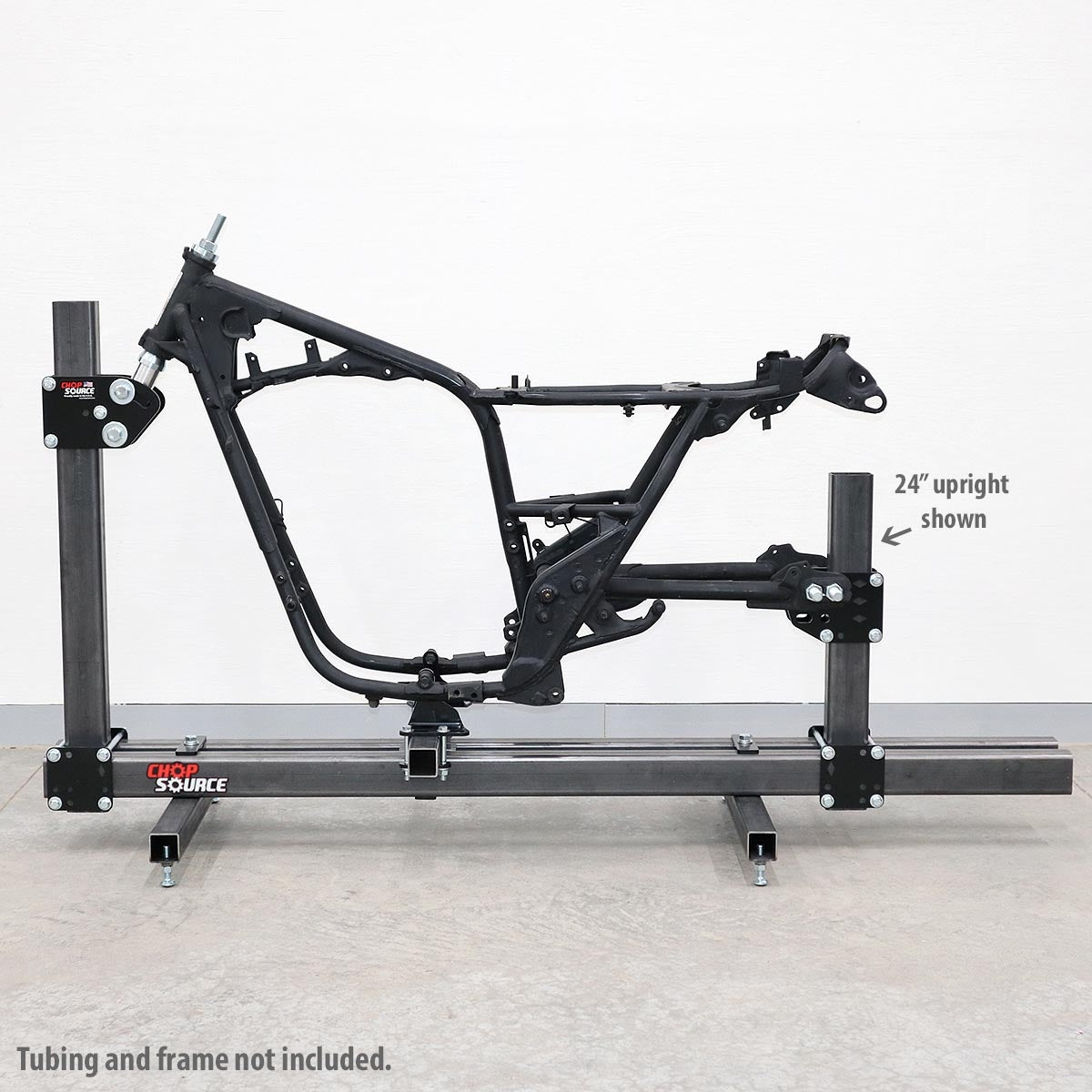

The Chop Source Full Frame Jig Kit includes all of the fixtures and hardware you need to get your motorcycle frame welding jig started. You need to supply 17' of 2"x3" (1/8" wall) tubing and 6.5' of 2"x2" (1/8" wall) tubing for the jig to be assembled as show. See the assembly instructions for more details. Structural tubing can be found at your local metal supply shop or welding/fabricating shop. The frame jig kit bolts together so you can easily reconfigure the jig or break it down to store or move.  The neck fixture will accommodate rakes from 15 degrees to 60 degrees.

All fixture plates in the Full Frame Jig Kit are powder coated black.

The Full Frame Jig Kit Includes:

Basic Kit

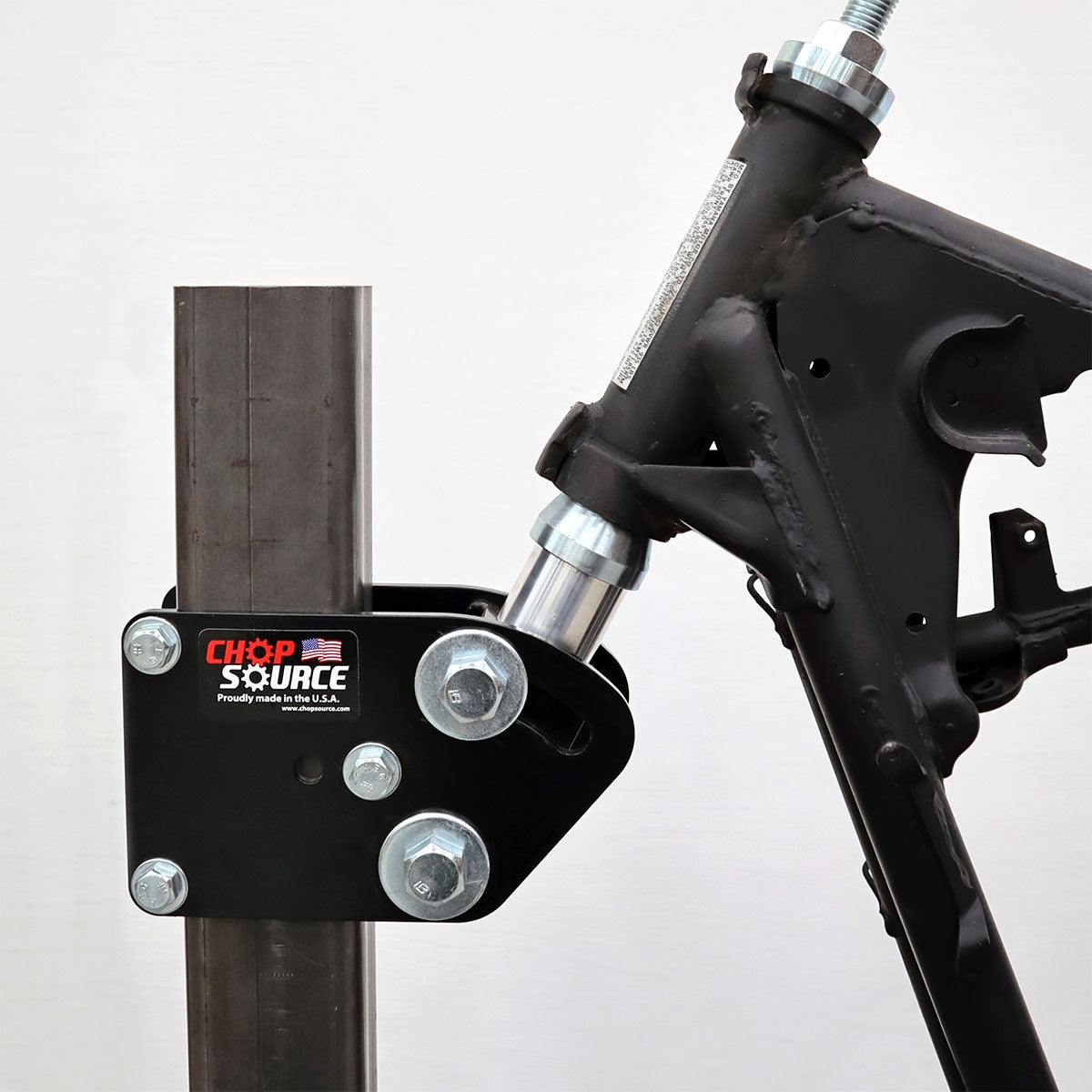

  - Neck Fixture (version 2.0)

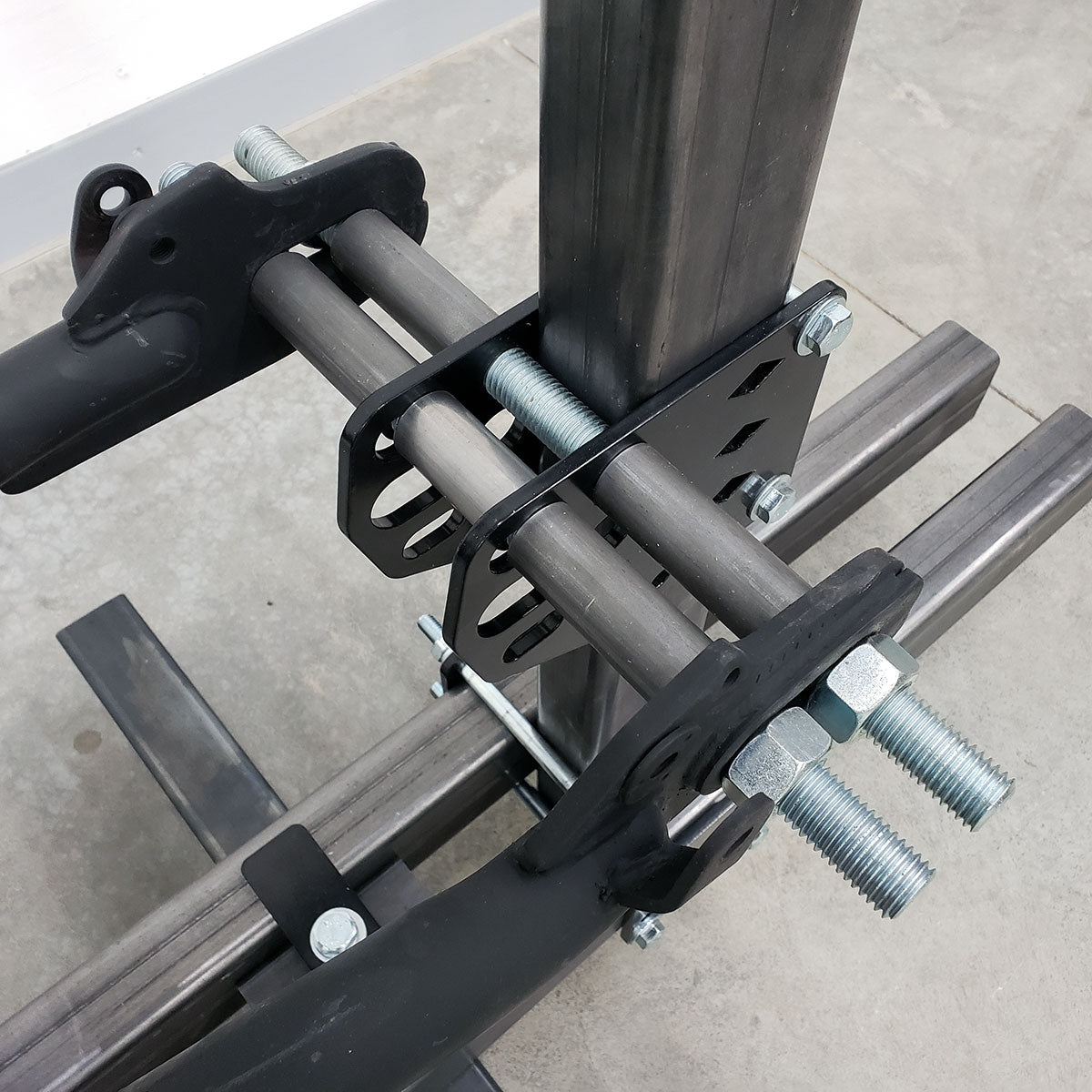

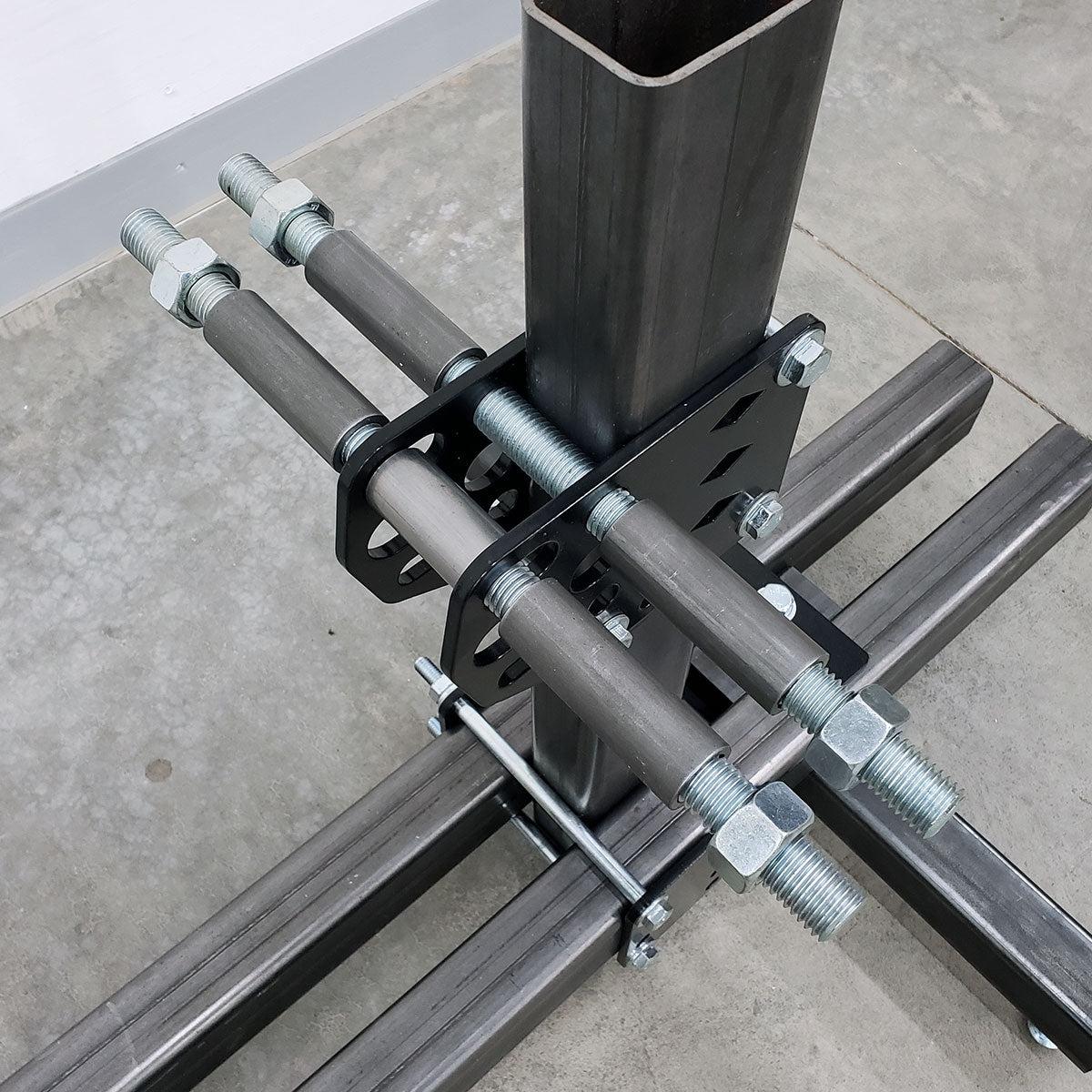

  - Axle Plate Fixture

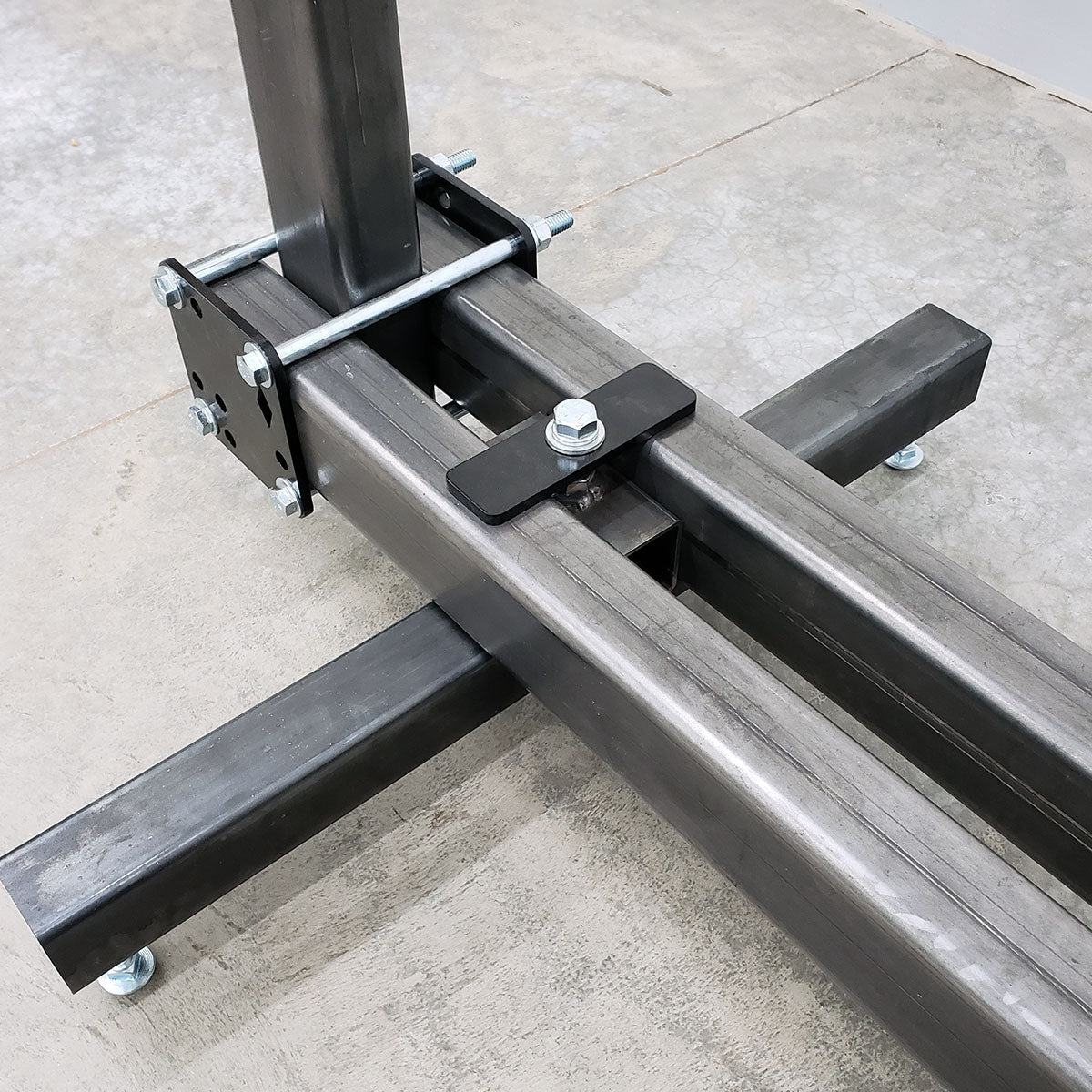

  - Two Base Clamps
  - 1018 Mild Steel Neck Cones (can upgrade to stainless steel cones).

Plus:

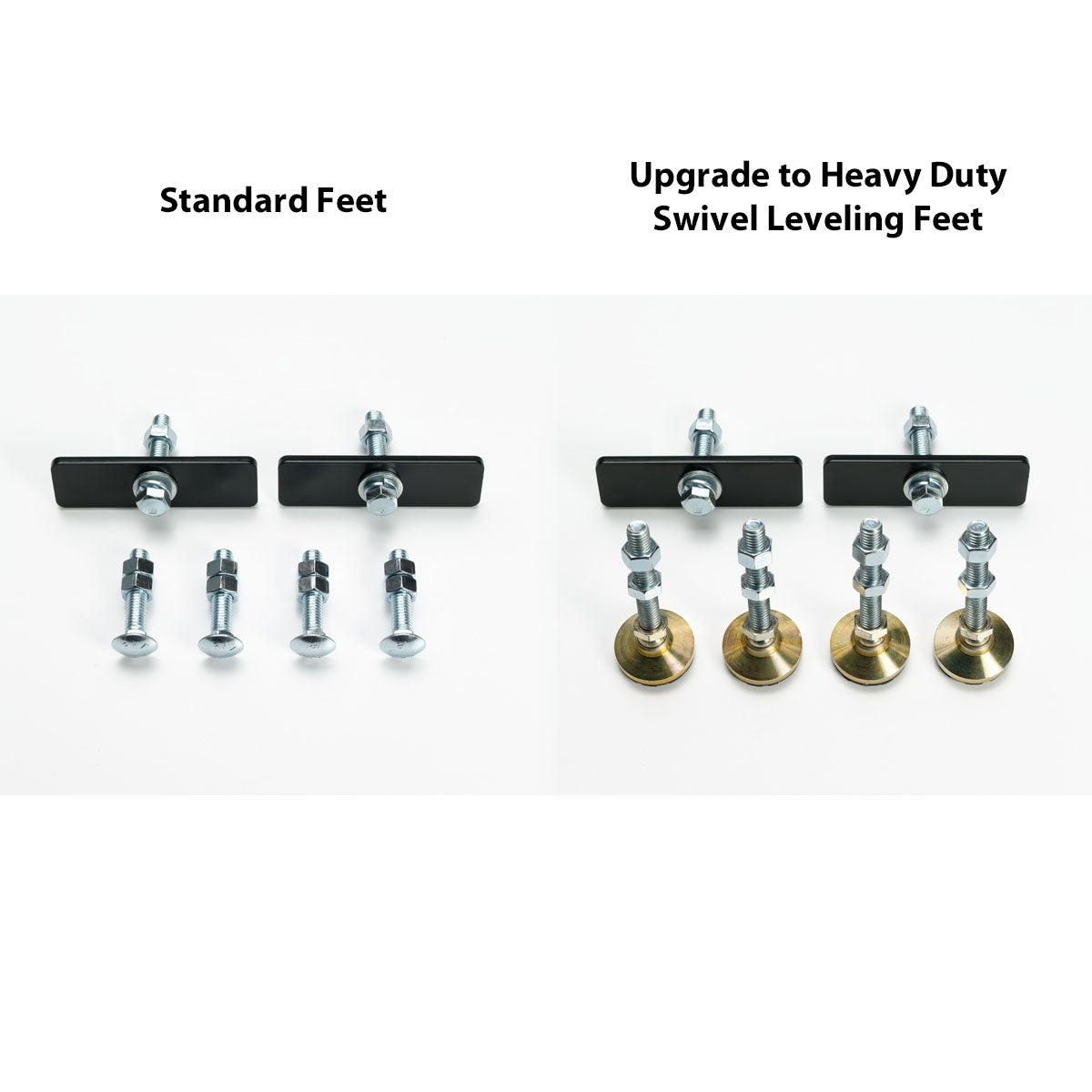

  - Feet Kit (can upgrade to Swivel Leveling Feet)

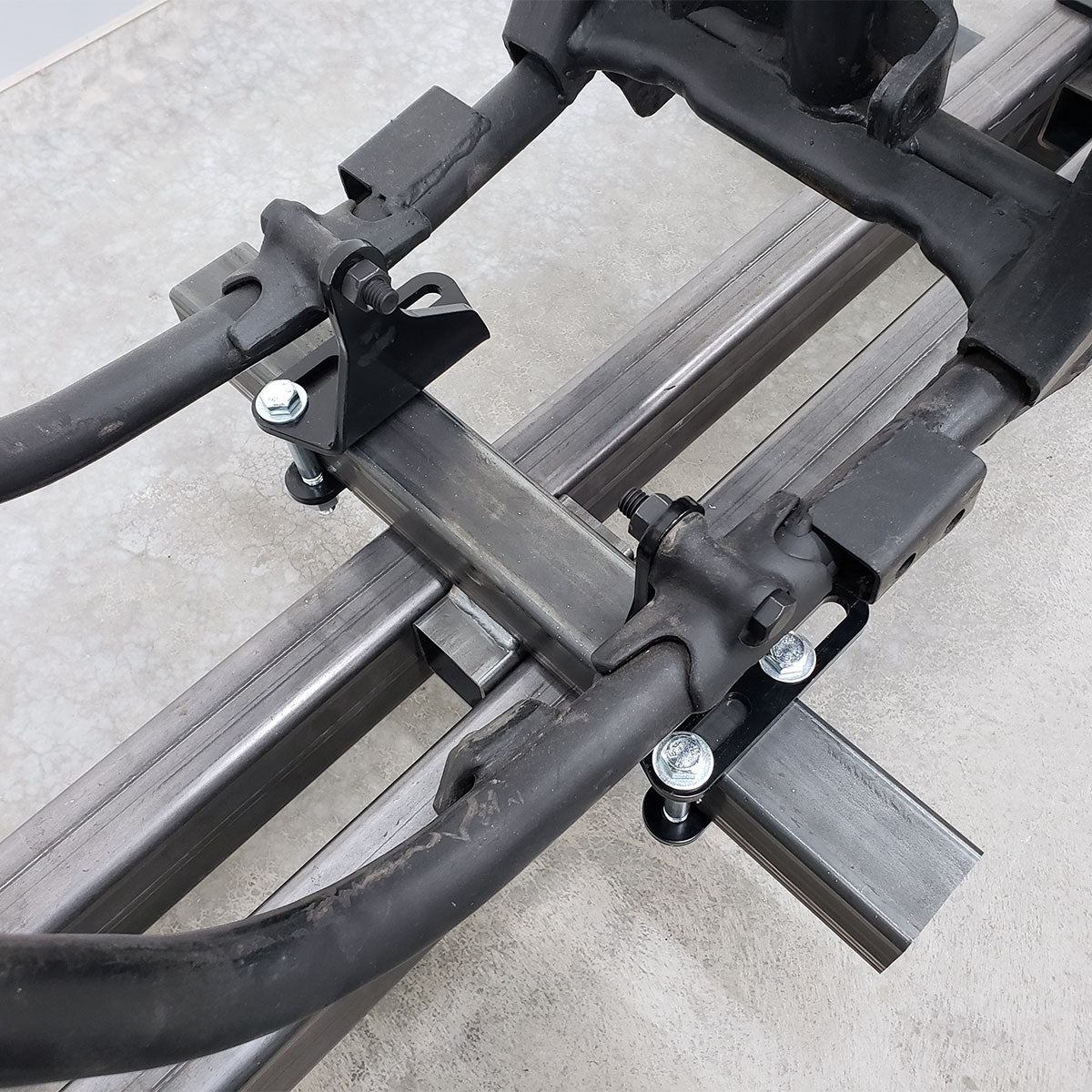

  - Center Fixture or Adjustable Width Fixture.

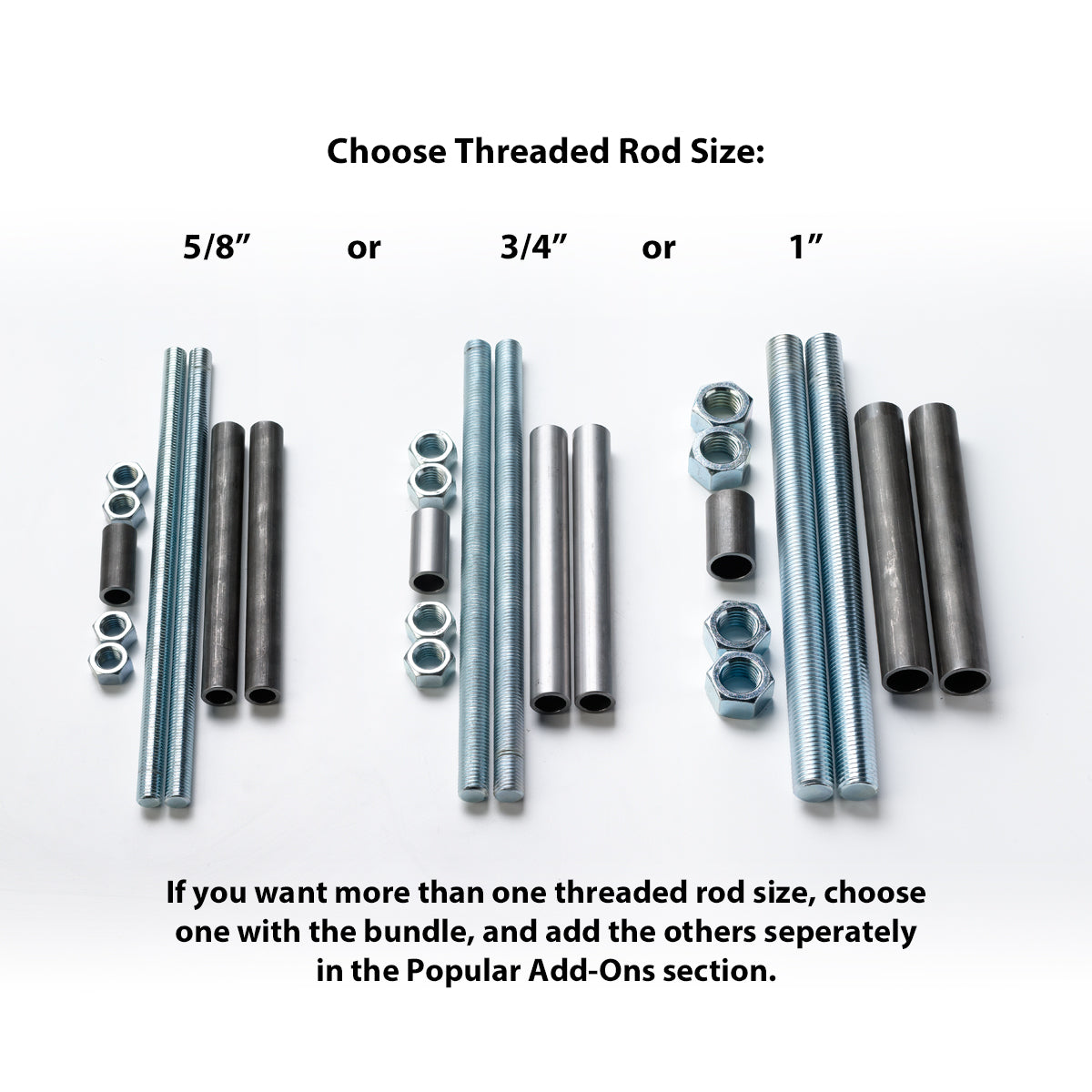

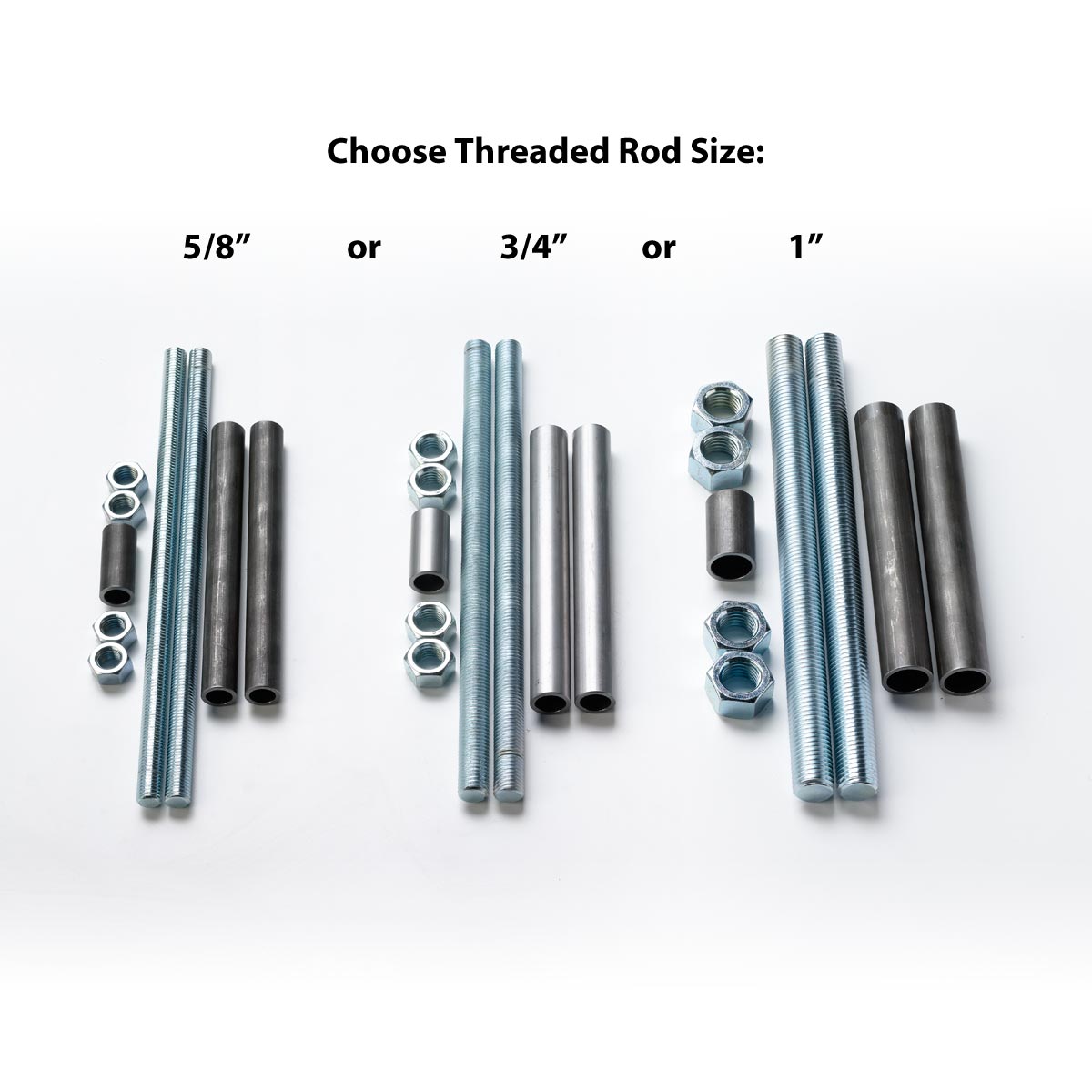

  - 3/4" or 5/8" Threaded Rods and Spacers (1" size is +$15)

MADE IN THE USA.

Want your jig to have a dedicated stand and rotate for easier welding? Also purchase the Frame Jig Rotisserie Stand.

This items ships free to the contiguous United States!  We ship all over the world frequently, but shipping is expensive because the parts are very heavy.  Add the items you want to the shopping cart and use the shipping calculator in the cart for rates.

Download the Chop Source Frame Jig Plans / Assembly Instructions
