- Description
-
Details

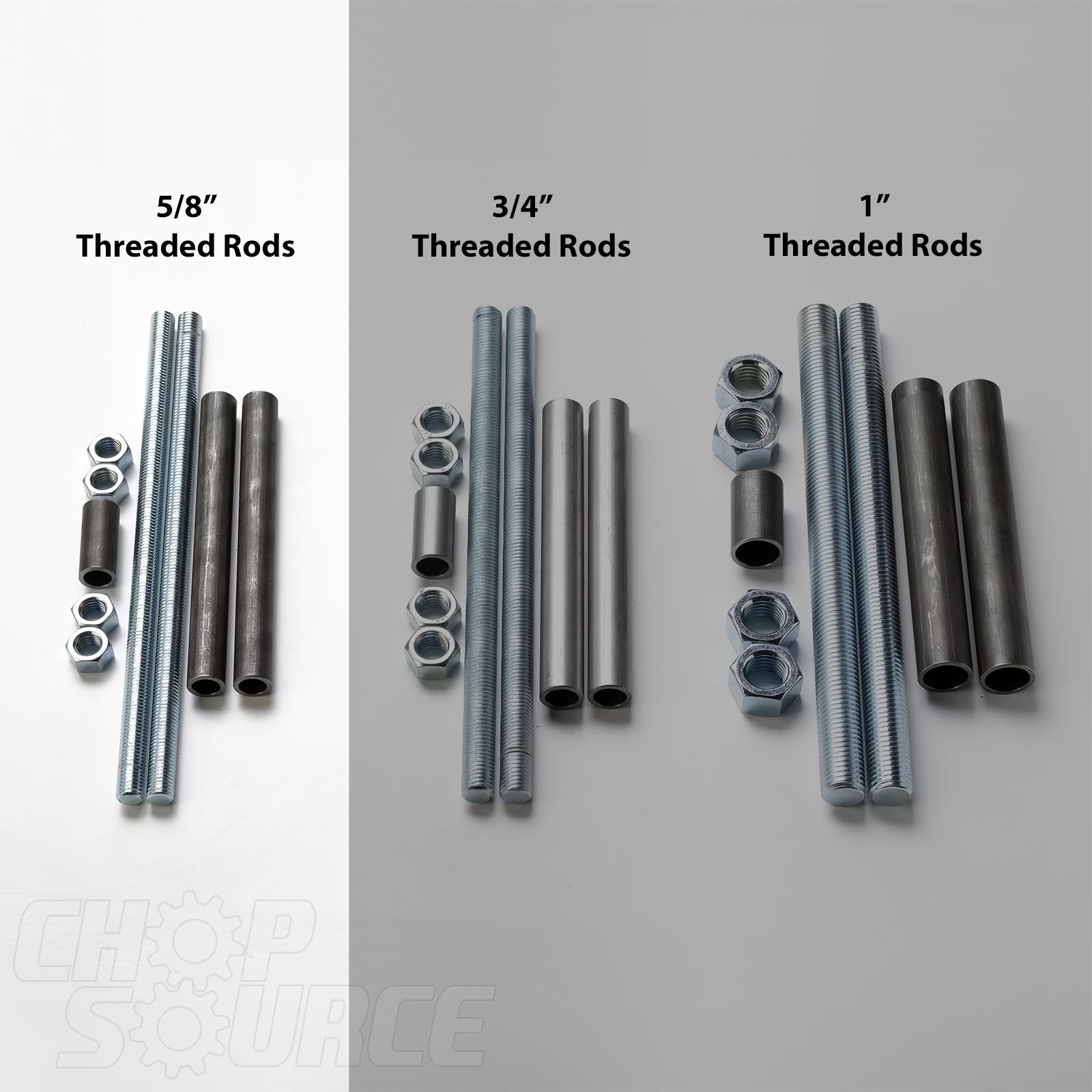

Complete the Axle Plate Fixture with 5/8" threaded rods and spacers. The fixture that holds the axle plates has three hole sizes, 1", 3/4", and 5/8". The 5/8" threaded rods and spacers are used with axle plates that have 17mm slots. The spacers need to be cut to length based on the distance between your axle plates

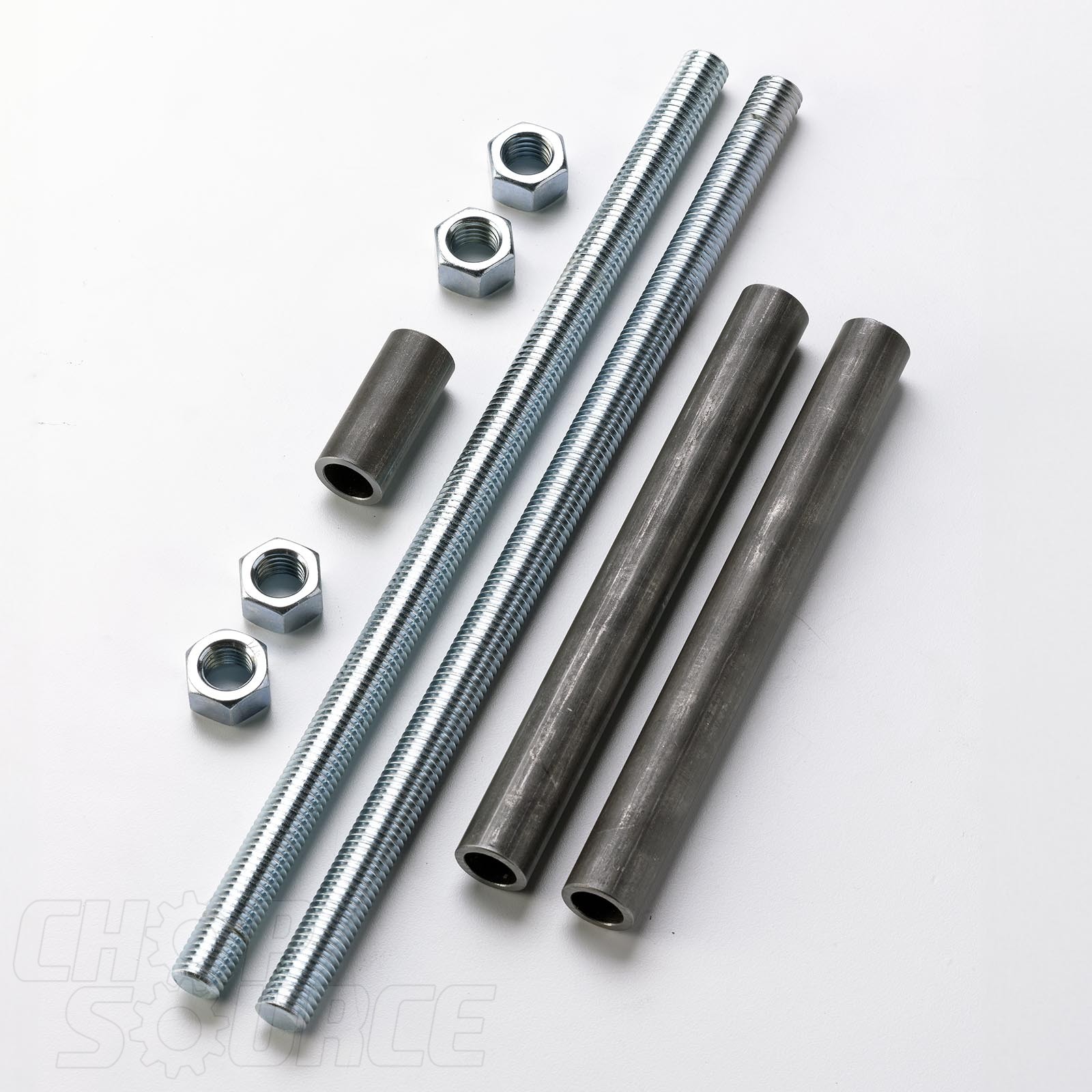

Includes:
- Two 5/8" threaded rods 14" in length.
- Two 8" spacers (used to make four spacers to space axle plates away from the fixture plates).

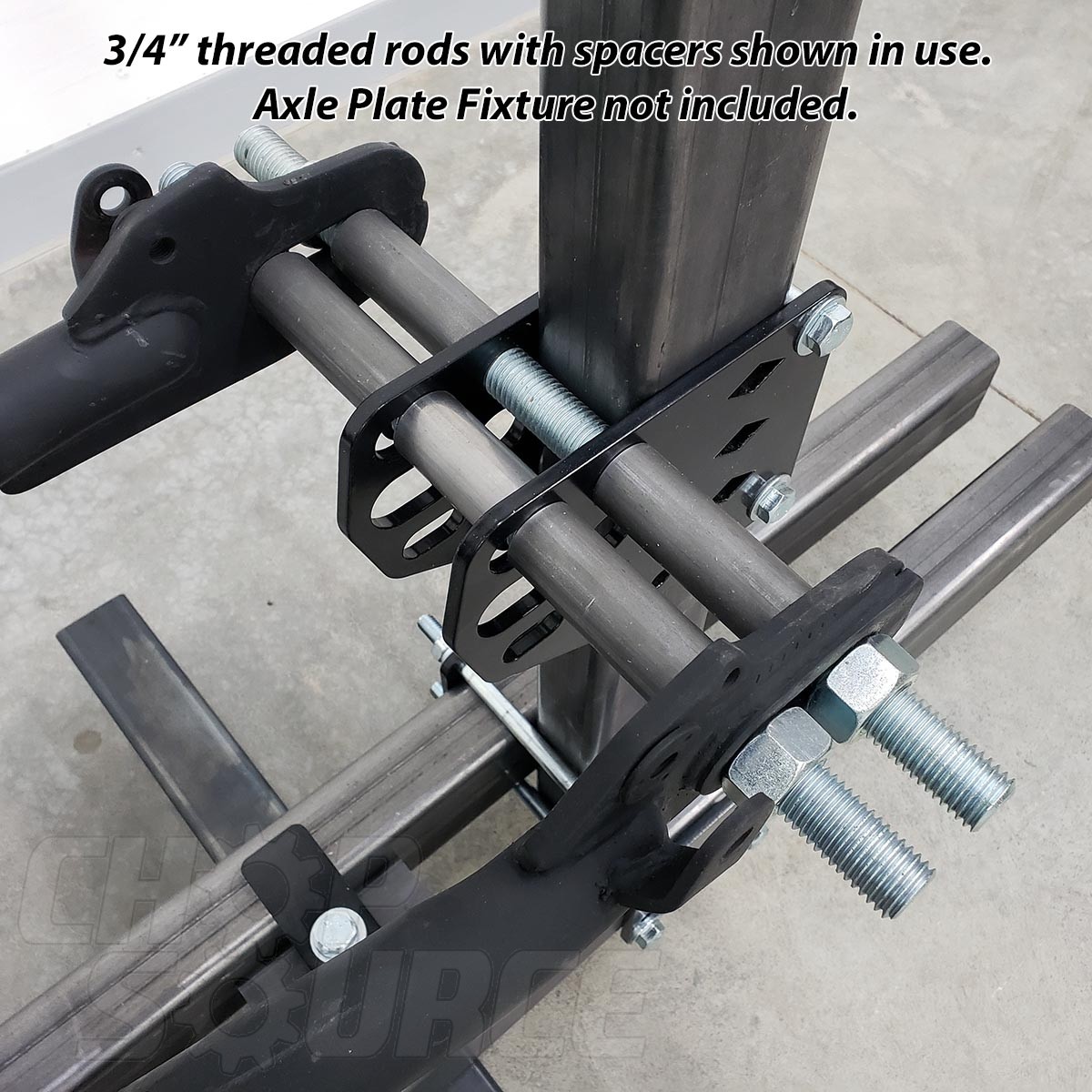

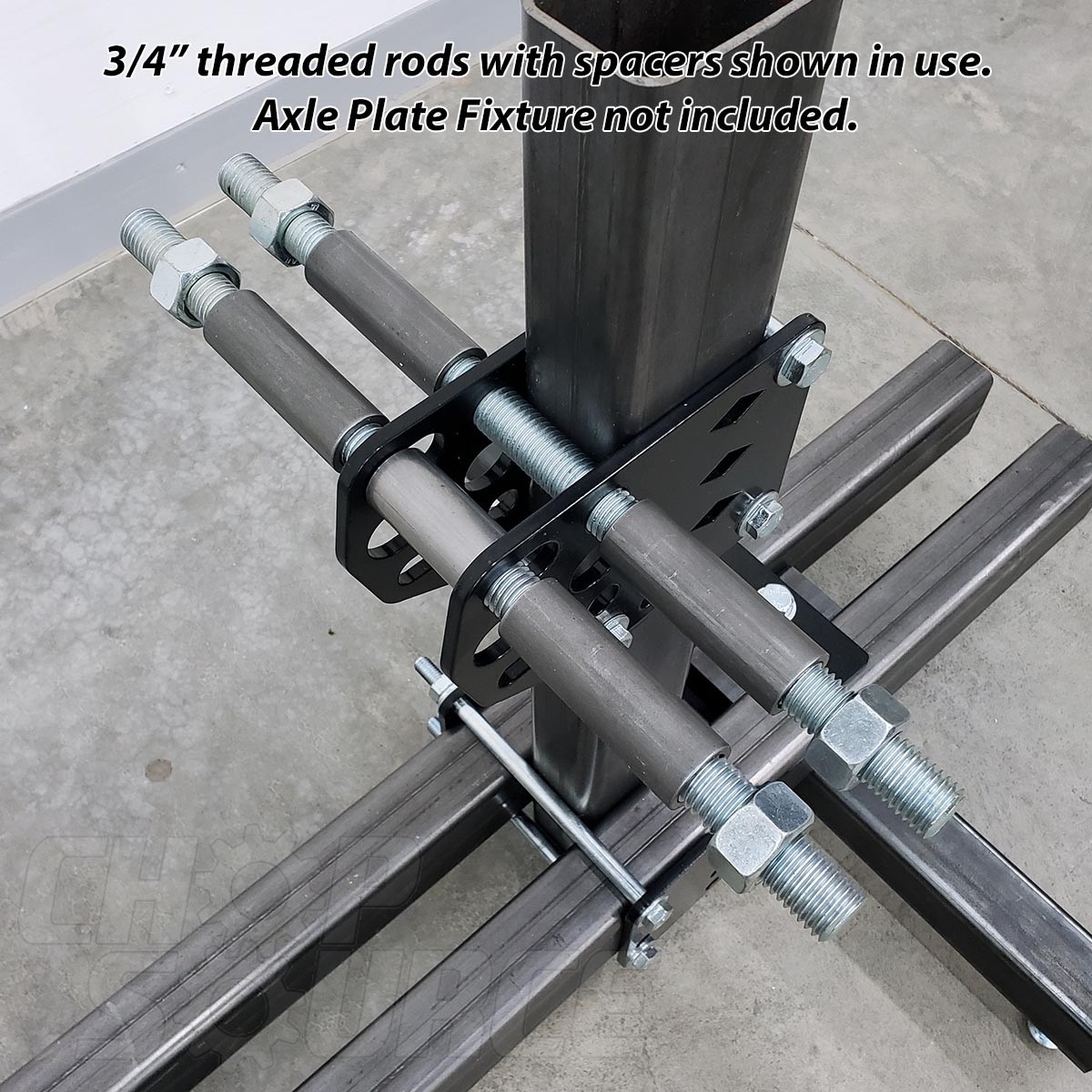

- One 2" spacer used between the fixture plates on the outer threaded rod (see pictures).
- Reviews
-
Customer Reviews 1 item(s)
- Well made product
-
I chose to order the initial jig without the rotisserie, to see if I needed it, and when the jig arrived; I immediately decided to purchase it. I would like to say, it’s a well made product that I am Impressed with.
Rating
