Basic Bicycle Frame Jig Kit (Welding Jig / Fixture)

Basic Bicycle Frame Jig Kit (Welding Jig / Fixture)

More Views

Basic Bicycle Frame Jig Kit (Welding Jig / Fixture)

From: $424.95

To: $474.95

Price as configured: $424.95

1 Review(s) | Add Your Review

Availability: In stock

See description below.

Head Tube Fixture*

1 x Head Tube Fixture (for Bicycle Frame Jig) +$0.00

Choose 1018 Mild Steel or Stainless Steel Head Tube Cones*

Head Tube Cones (for Bicycle Frame Jig/Fixture) - Steel - Pair +$0.00
Head Tube Cones (for Bicycle Frame Jig/Fixture) - Stainless Steel - Pair +$22.00

Qty:

Bottom Bracket Fixture*

1 x Bottom Bracket Fixture (for Bicycle Frame Jig) +$0.00

Choose 1018 Mild Steel or Stainless Steel Bottom Bracket Cones*

Bottom Bracket Cones (for Bicycle Frame Jig/Fixture) - Steel - Pair +$0.00
Bottom Bracket Cones (for Bicycle Frame Jig/Fixture) - Stainless Steel - Pair +$28.00

Qty:

Rear Axle Fixture (Dropout Fixture)*

1 x Rear Axle Fixture (for Bicycle and Mini Bike Frame Jigs) +$0.00

Two Base Clamps*

2 x Frame Jig Base Clamp +$0.00

* Required Fields

Price as configured: $424.95

Qty:

| Add to Compare

Description

Details

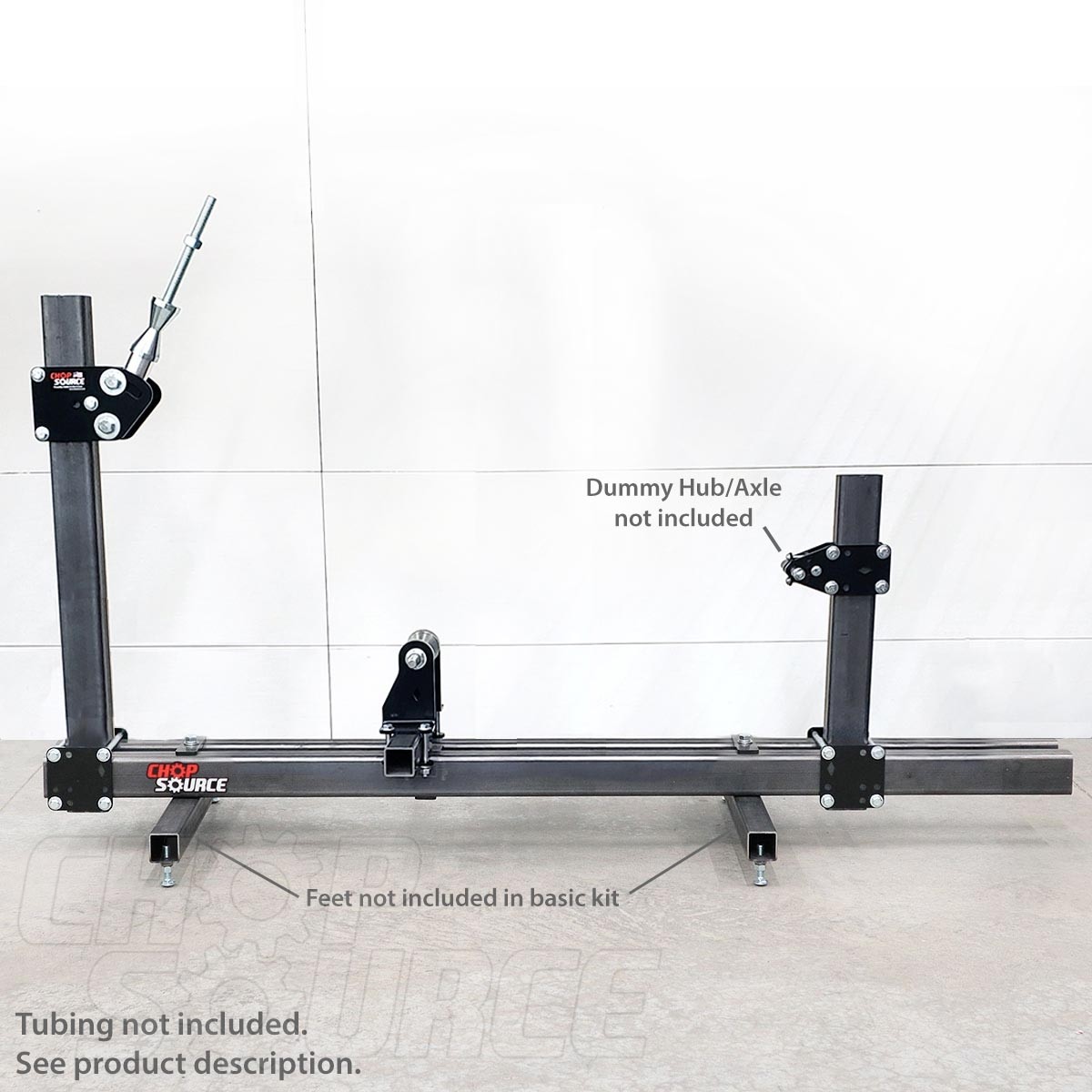

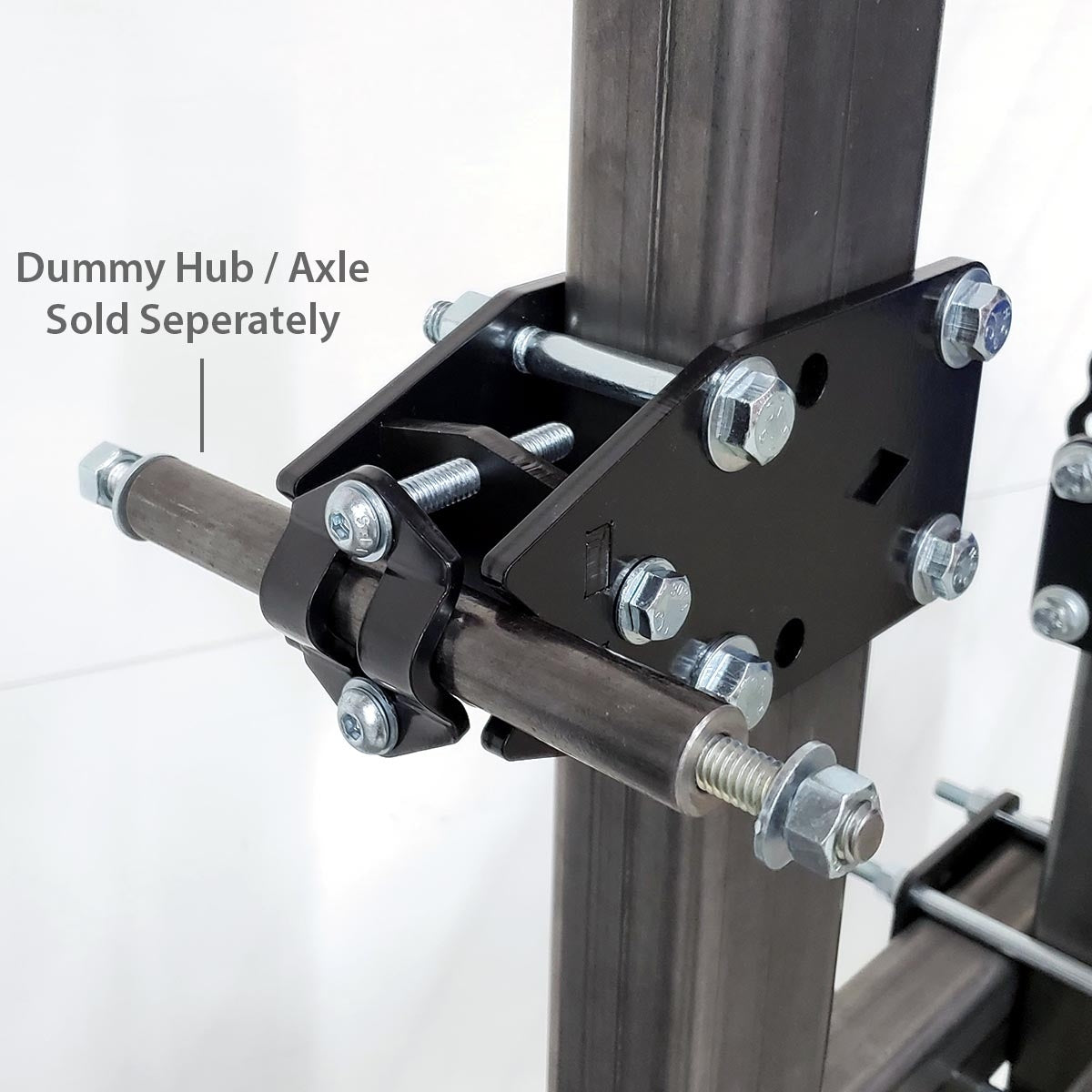

The Bicycle Basic Frame Jig Kit includes the essential fixtures to get you started with building your bicycle frame welding jig. You need to supply 17' of 2"x3" (1/8" wall) tubing for the jig. See the assembly instructions for more details. Structural tubing can be found at your local metal supply shop or welding/fabricating shop. The frame jig kit bolts together so you can easily reconfigure the jig or break it down to store or move. The head tube fixture will accommodate head tube angles from 40 to 75 degrees from horizontal. If mounted to a 2"x2" upright, it can go to 90 degrees by flipping around the rod block. The rear axle fixture (dropout fixture) clamps tubing or threaded rod from .3" to 1.25" in diameter (dummy hub/axle). See the individual product pages for each fixture in this bundle for more pictures and details.

All main fixture plates in the Full Frame Jig Kit are laser cut from 1/4" mild steel and are powder coated black.

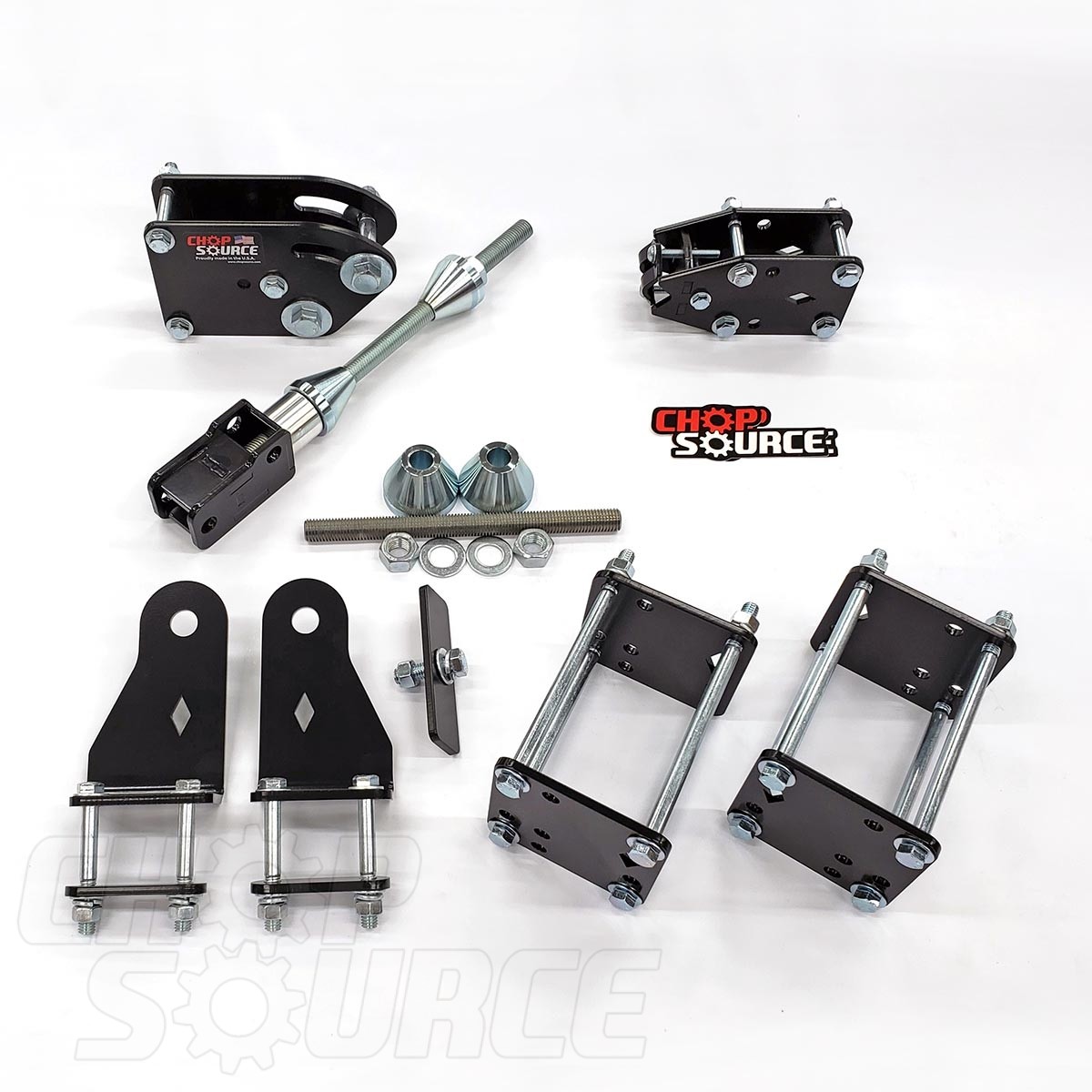

The Basic Frame Jig Kit Includes:

- Head Tube Fixture
- Head Tube Cones - Zinc-plated steel (can upgrade to stainless steel cones +$22).

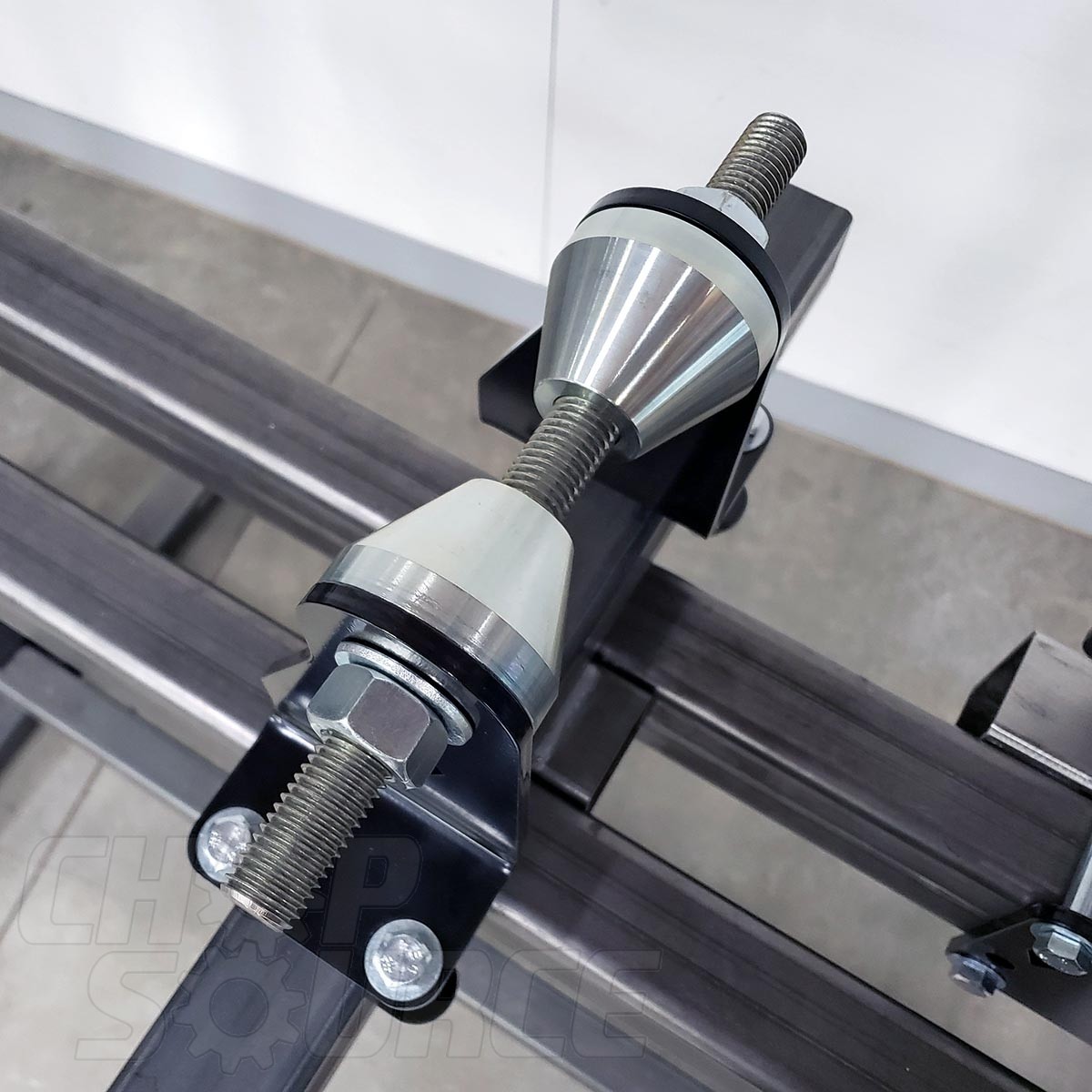

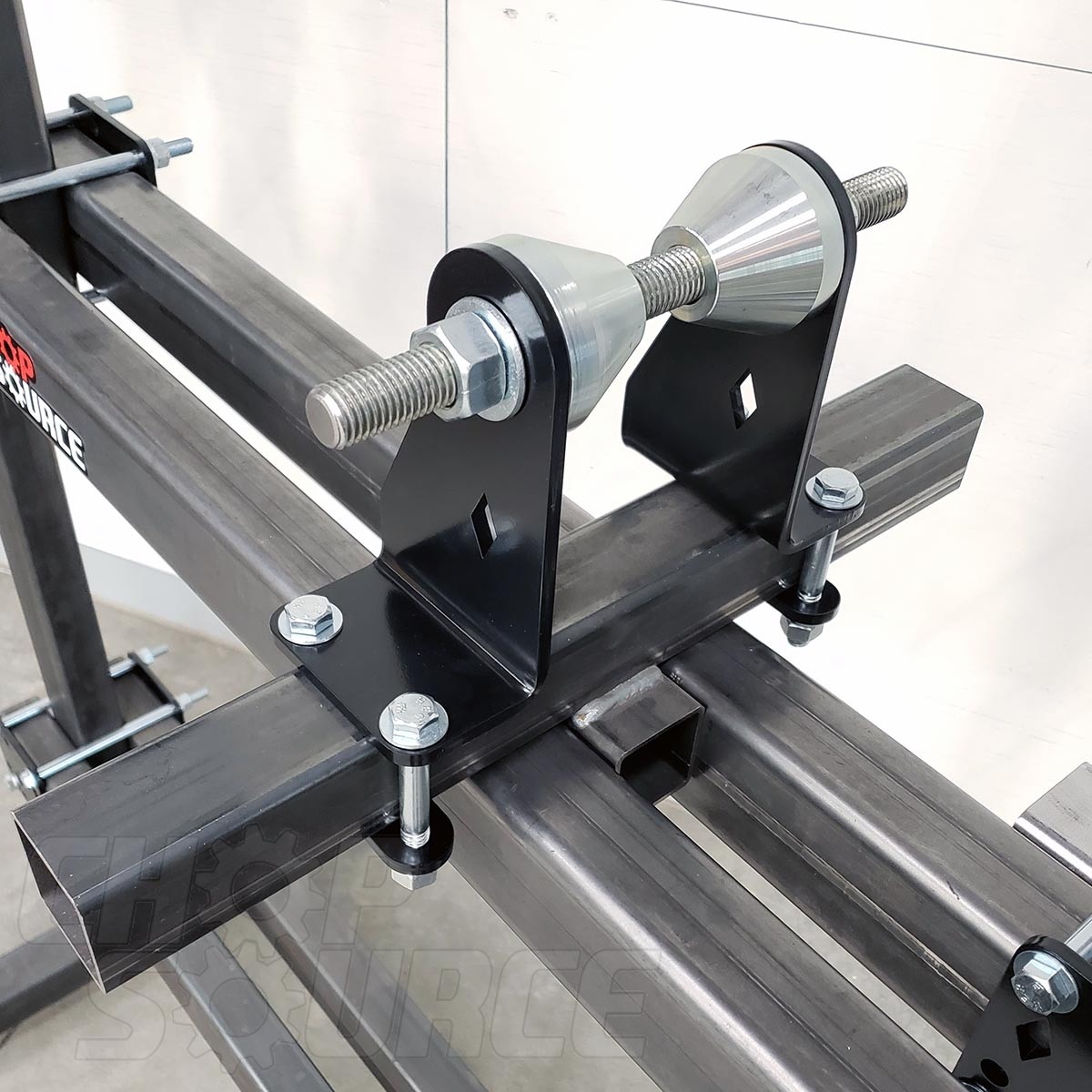

- Bottom Bracket Fixture
- Bottom Bracket Cones - Zinc-plated steel (can upgrade to stainless steel cones +$28).
- Rear Axle Fixture (dropout fixture)
- Two Base Clamps

MADE IN THE USA.

Need something more complete? Purchase the Full Bicycle Frame Jig Kit.

Want your jig to have a dedicated stand and rotate for easier welding? Purchase this bundle, the Frame Jig Rotisserie Stand, and either the Feet Kit or Swivel Leveling Feet.

This item ships free to the contiguous United States! We ship worldwide frequently, but shipping is expensive because the parts are very heavy. Add the items you want to the shopping cart and use the shipping calculator in the cart for rates.

Download the Chop Source Bicycle Frame Jig Assembly Instructions
