Description

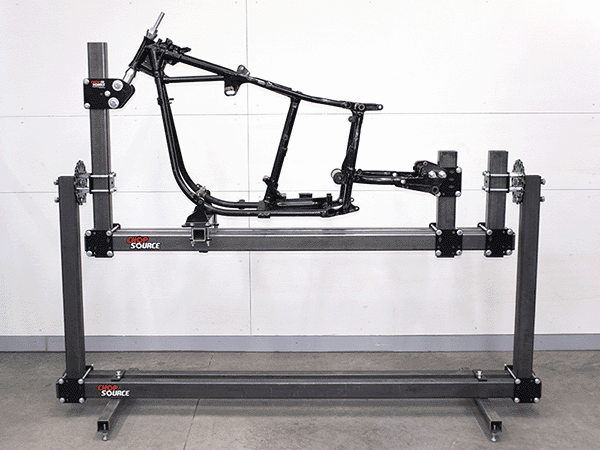

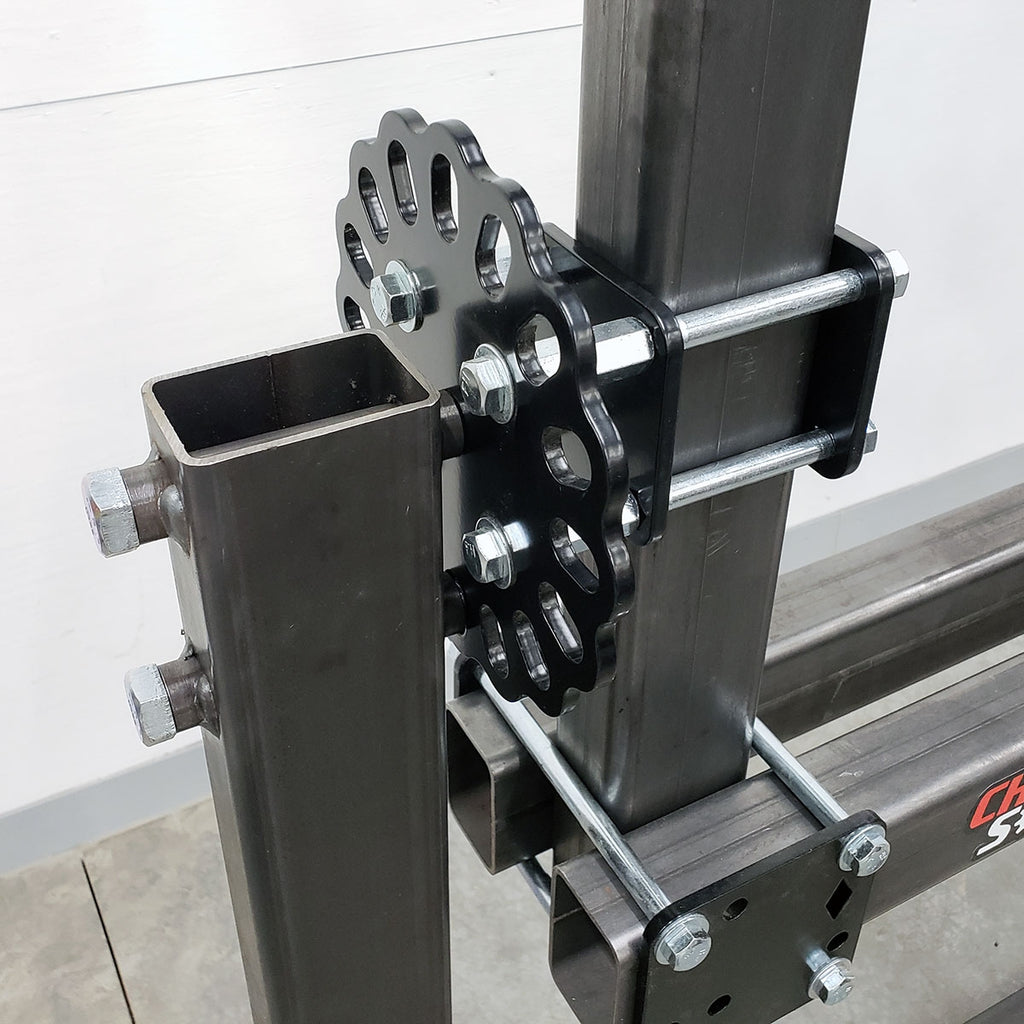

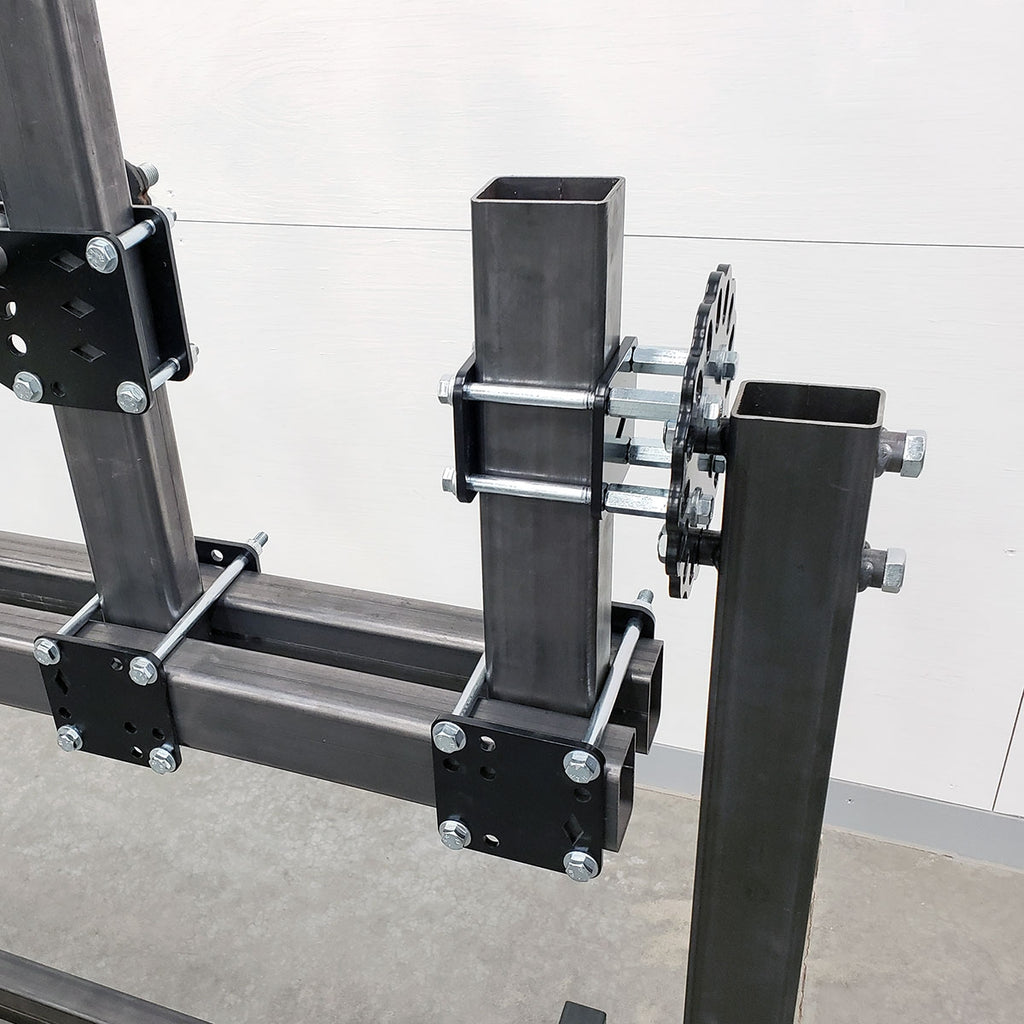

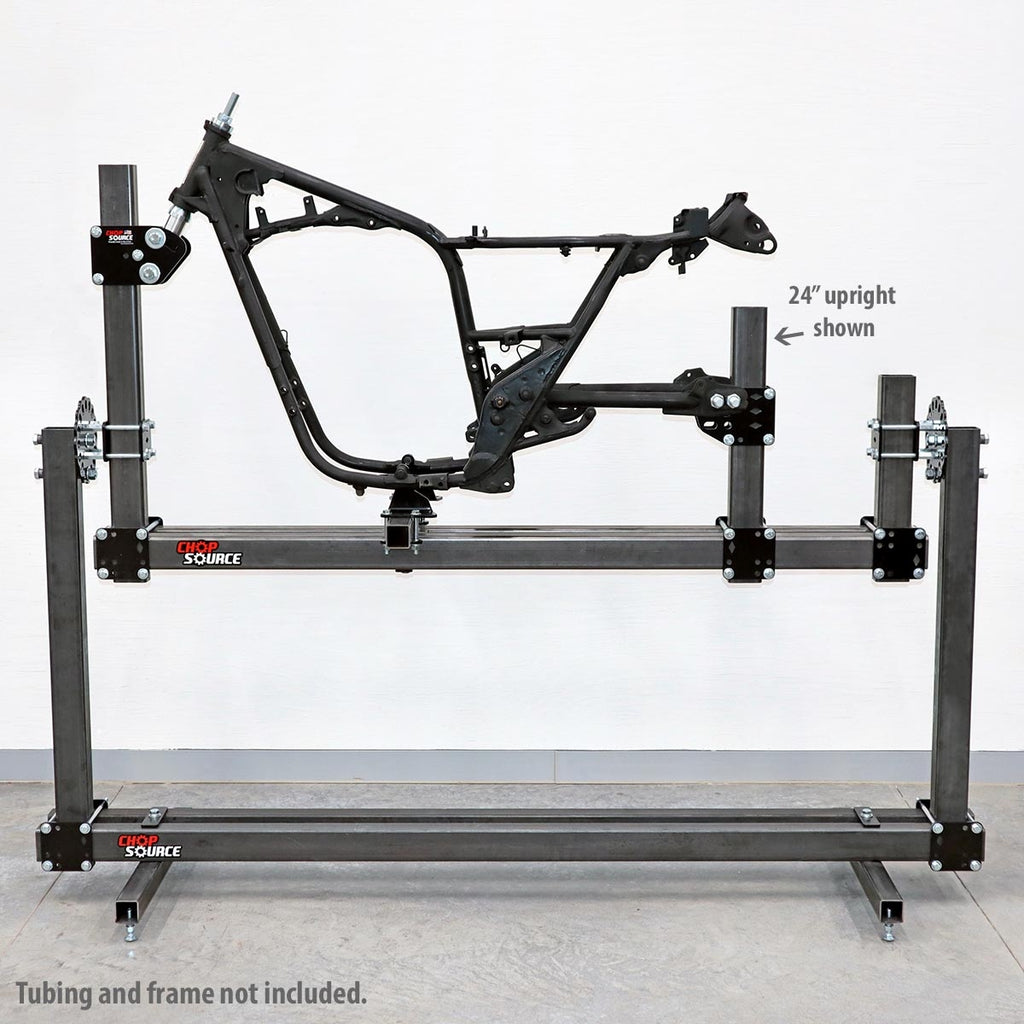

Get your motorcycle or bicycle frame jig off the table or motorcycle lift and make it rotate for easier welding with the Chop Source Frame Jig Rotisserie Stand. The brackets lock in 16 positions and can be moved along their uprights to balance the jig and frame. You need to supply 22'2" of 2"x3" or 2"x2" tubing (1/8" wall) for the stand (move the feet from your table-top jig to the stand). See the assembly instructions for more details. Structural tubing can be found at your local metal supply shop or welding/fabricating shop. The rotisserie stand can be built with 2"x2" or 2x3" tubing. Shorter bolts for mounting the rotisserie brackets to 2"x2" tubing are included, but not shown in the product photos.
All fixture plates in the Rotisserie Stand are laser cut from 1/4" mild steel and are powder coated black.

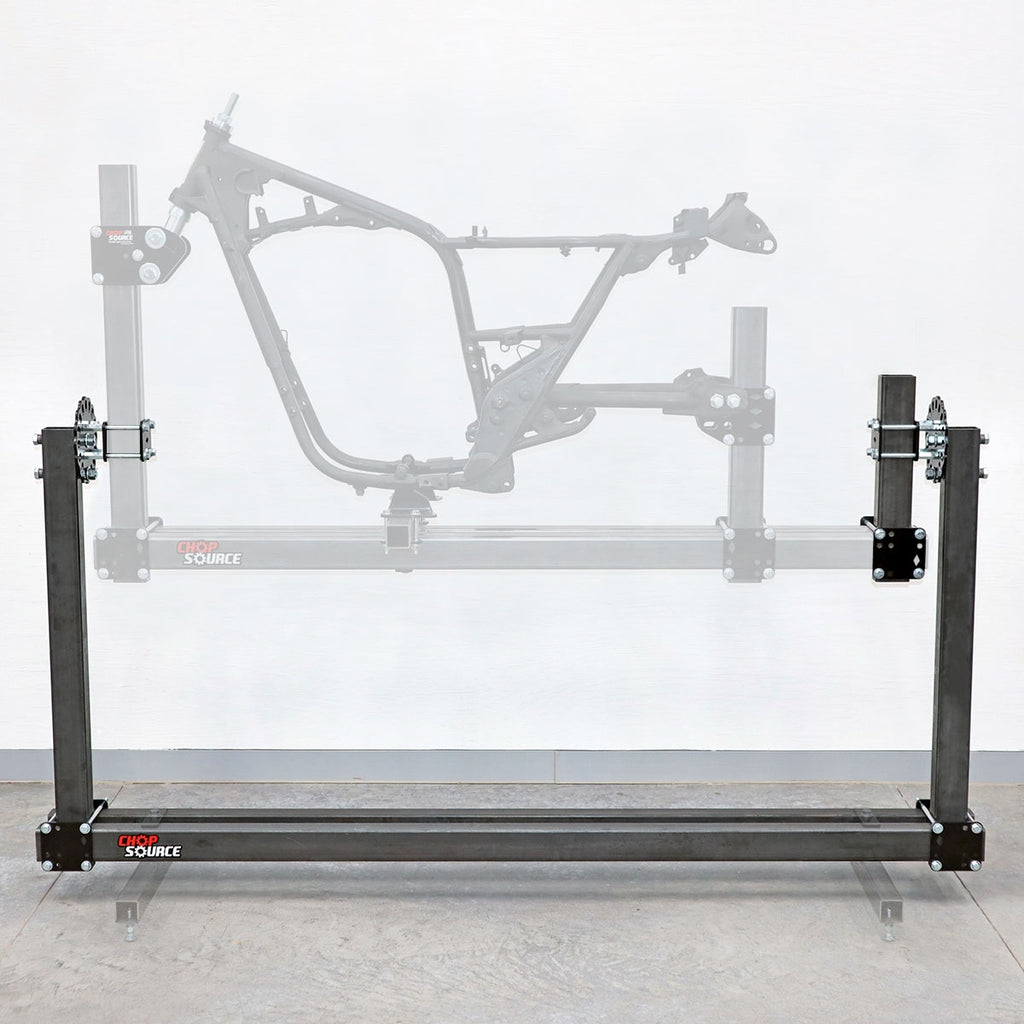

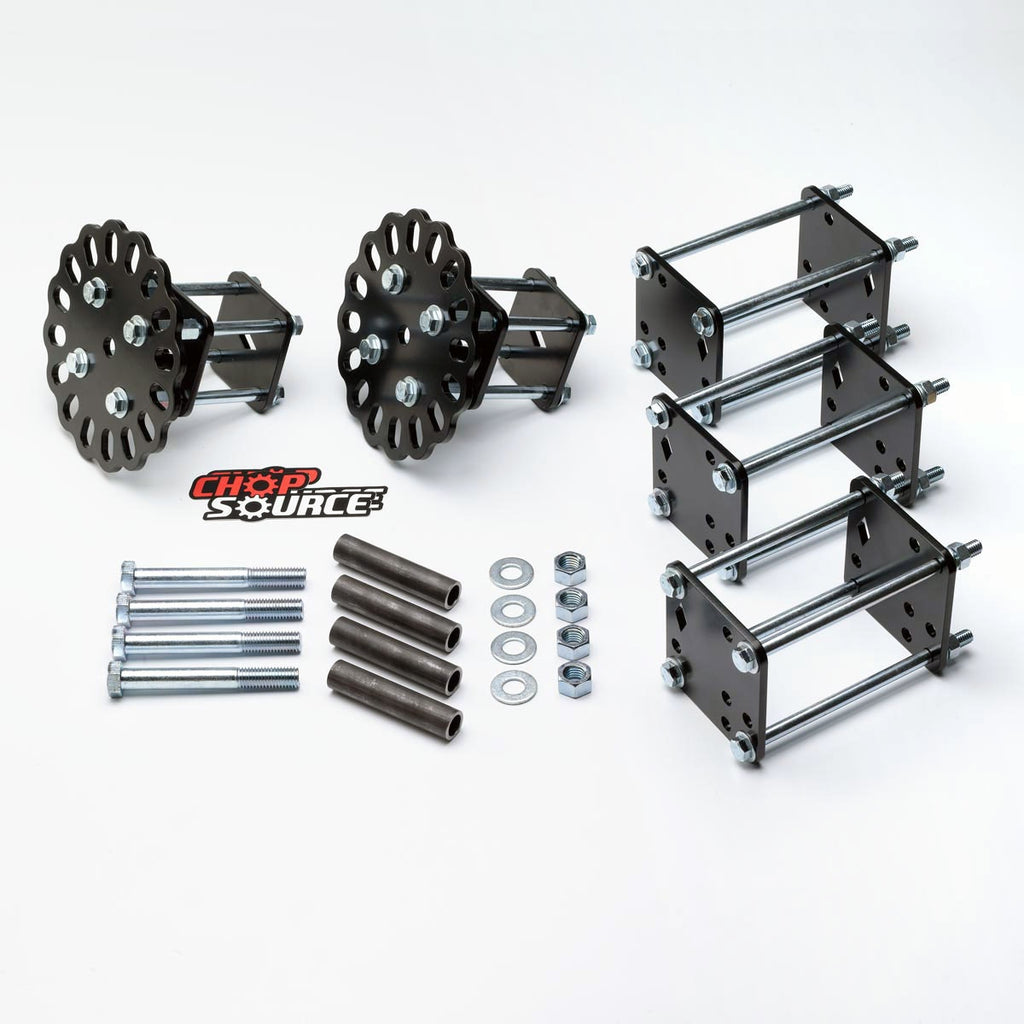

The Rotisserie Stand Includes Everything in the First Picture Only:
Save 10% with this bundle compared to buying everything individually.
MADE IN THE USA.
This item ships free to the contiguous United States! We ship worldwide frequently, but shipping costs are high because our products are very heavy. Add the items you want to the shopping cart, then enter your address at checkout to display rates.
Frequently purchased with the Full Motorcycle Frame Jig Kit, Full Bicycle Frame Jig Kit, and Mini Bike Frame Jig Kit.
Download the Chop Source Rotisserie Stand Assembly Instructions
Motorcycle Frame Jig and Rotisserie Stand Assembly Video by Rusty Van Ranch
