Description

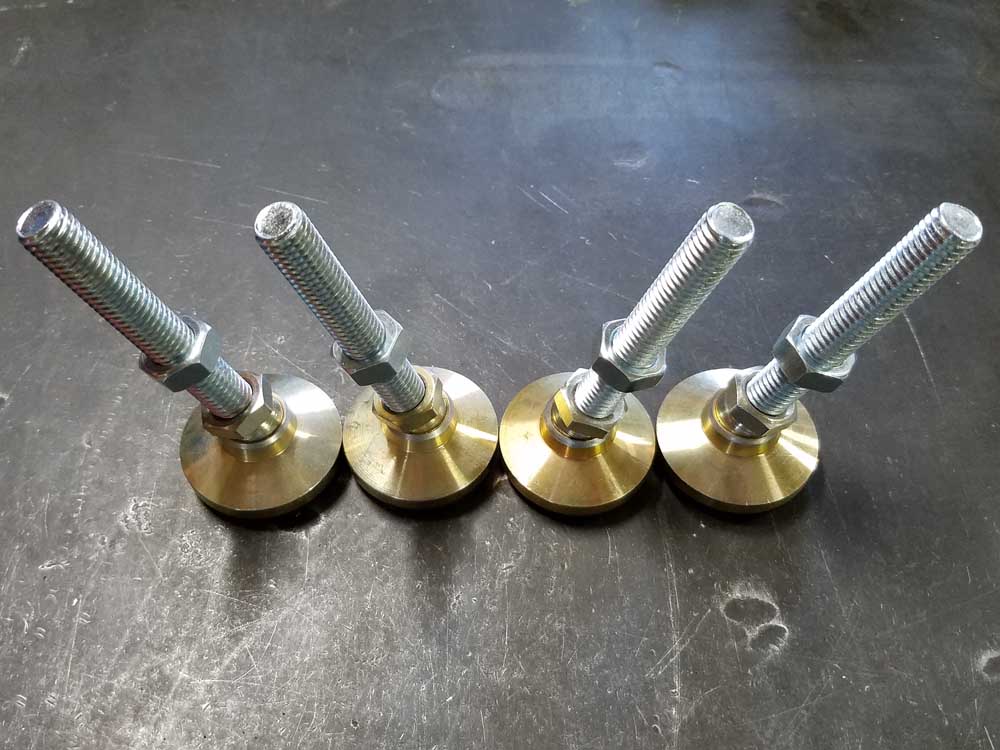

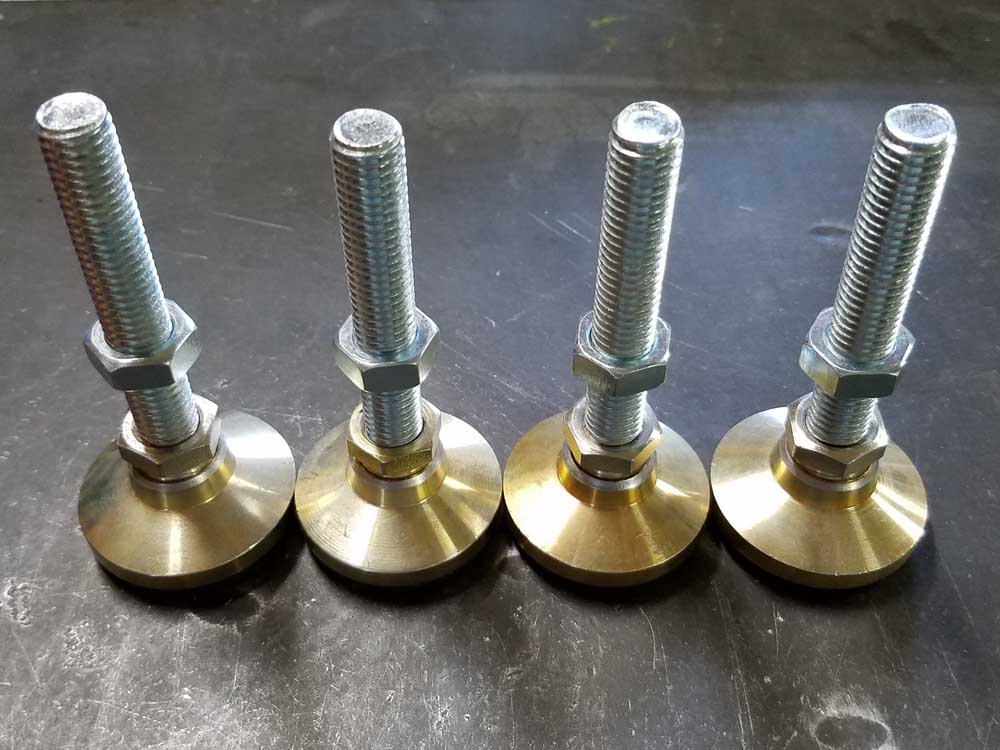

Heavy duty swivel leveling feet (leveling mounts), sold as a set of four. Each one has a steel swivel base and a zinc-plated 1/2"-13 x 3" threaded stud, plus a jam nut. The base swivels 15 degrees in all directions, so it sits flat on an uneven shop floor.
We use these on our frame jig feet, but they work just as well under welding tables, workbenches, machine stands, and other shop equipment. Thread the stud into a 1/2"-13 nut welded to your base or into a tapped hole, turn it to level, and lock it with the jam nut.
- Swivel base rated for 5,000 lb each by its manufacturer
- 1-7/8" base diameter
- 3/4" hex for adjusting with a wrench
- 3" thread length, between the common 2" and 4" lengths
- Zinc plated
Includes four leveling mounts only (as shown). Clamps and tubing are not included. For the complete frame jig version with clamps and hardware, see the Frame Jig Swivel Leveling Feet.
Swivel bases made in the USA.
