iGaging AngleCube - Digital Angle Gauge - 3rd Generation
Digital angle finders/cubes are very helpful for leveling your frame jig base and uprights, as well as determining the angle of each frame tube. They're an essential tool for building and modifying motorcycle frames and have many uses around the shop.

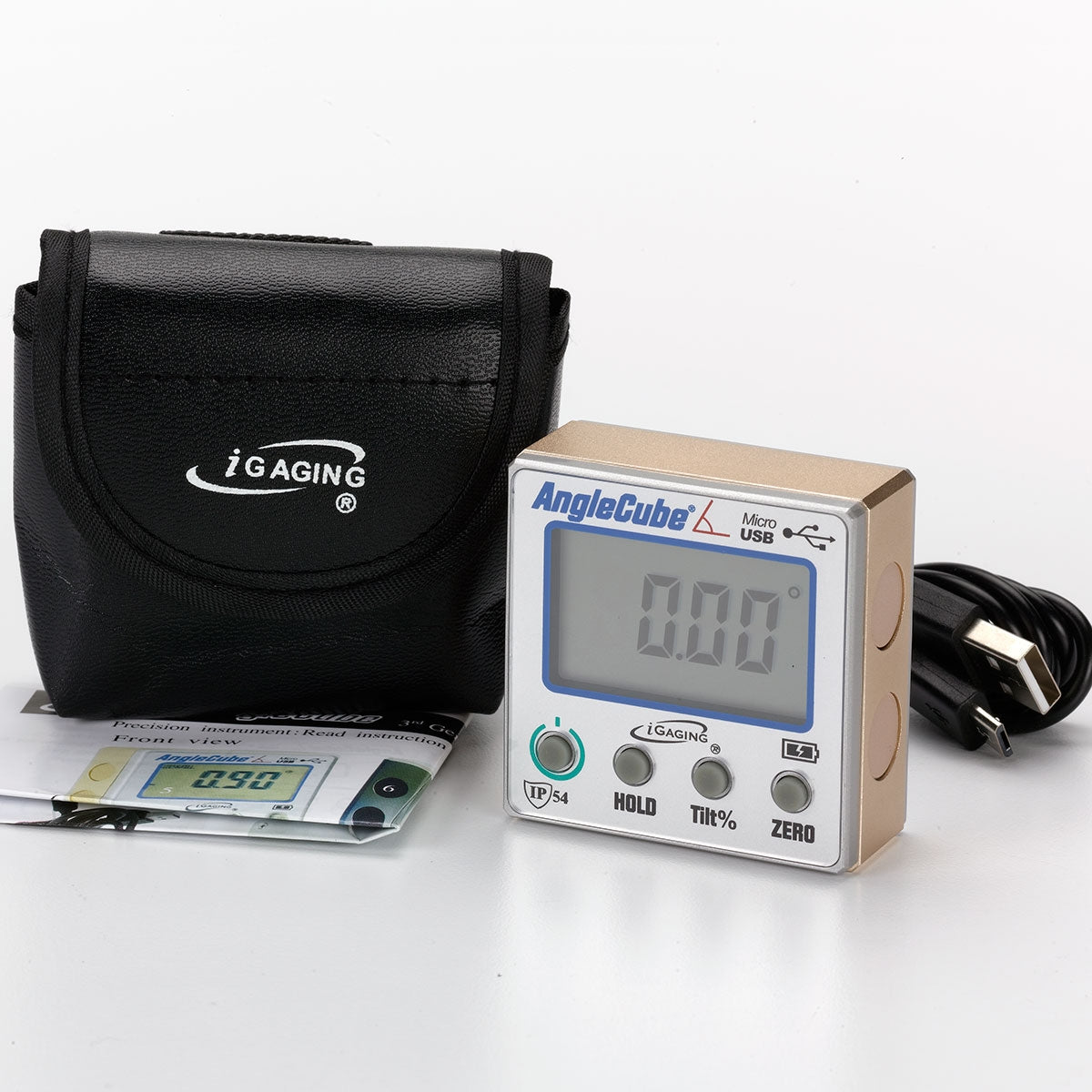

The 3rd generation Angle Cube is smaller, lighter, and calculates faster. It also has a rechargeable battery that charges via the included USB cable.
iGaging AngleCube - Digital angle gauge product specifications
- 3-Side Rare-Earth Magnets, 4-Side Measuring
- 3-in-1. Digital Level + Bevel Gauge + Tilt Gauge.
- IP54 Dust and Moisture Protection
- Military grade anodized alloy body (2.13” x 2.13” x .91”)
- Micro USB charging port (cable included)
- Large, clear LCD display, reversible reading
- Precision Digital Level Sensor
- Designed and Engineered in California
- Measuring: 4 X 90° - Repeatability: 0.1°
- Resolution: 0.05° - Accuracy: ± 0.2°
- Rechargeable battery installed
- Auto Shut Off
- Weight: 2.7oz
iGaging part number: 35-2268
