This hardtail kit comes with 1" and 1-1/8" tubes and was requested by customers to use for Harley Big Twin frames, but it can be used on other bikes as well. You will need to determine if this kit will work for your needs. Each tube only has one bend (as shown in the product image). Consider the size of the rear wheel/tire you'll be using as well as chain clearances. This kit does not come with instructions. Returns are allowed for 14 days from delivery and are only allowed if the kit is completely unused (and free from rust) Return shipping will be paid by the customer.
This do-it-yourself universal hardtail kit gives you more flexibility with the final look of your motorcycle compared to pre-welded hardtail sections. With this kit, you can create almost any drop and typically at least a 6" stretch (or more depending on your frame). The kit uses DOM tubing which is stronger and more uniform than ERW tubing (also 2 to 3 times as expensive). You can choose from a variety of axle plate styles and slot sizes.
We've found that people want to build their own hardtail and have the skills and a welder, but don't have a proper tubing bender. This kit takes care of that and will also save you time in finding DOM tubing and axle plates.
Made from 1020 mild steel DOM tubing with a .120" wall thickness.

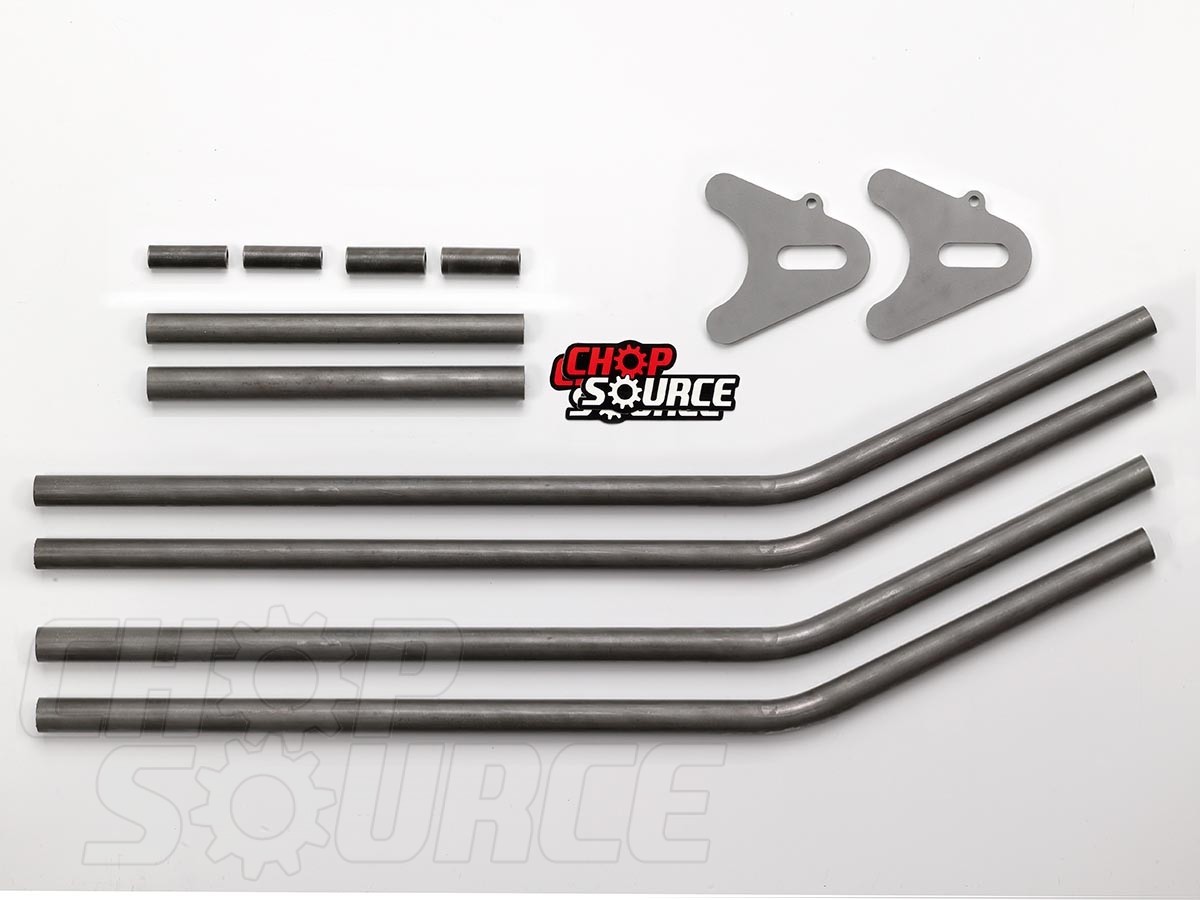

The hardtail kit comes with the following:
- Two pieces of bent 1-1/8" DOM Tubing (36" inches long with the bend centered at 13" from one end)
- Two pieces of bent 1" DOM Tubing (36" inches long with the bend centered at 13" from one end)
- Two 12" cross tubes (one from 1" DOM tubing and one from 1-1/8" DOM tubing)
- Four 2.5" sleeves (slugs) for butt welds (two to fit into 1" x .120" wall DOM tubing, and two to fit into 1-1/8" x .120" wall DOM tubing)
- Your choice of axle plates.
- Optional spacer plates.

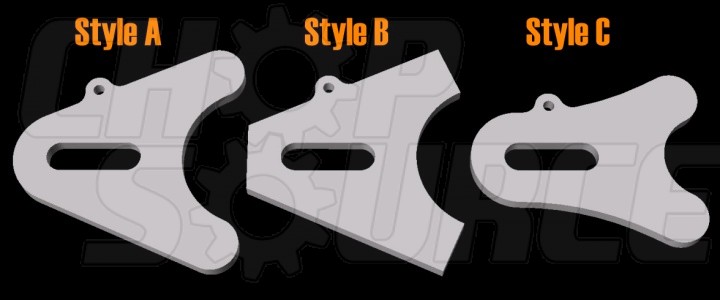

The axle plates come in three styles: A, B, and C, and all are available with 17mm, 20mm, 3/4", or 1" / 25mm slots. See Axle Plates.
For 20mm (and 3/4") axle plates, you can add a pair of 3/16" (7ga) spacer plates for $10 to increase the axle plate width to 9/16" to allow for wider chain adjusters. The spacer plates only come with 20mm slots, but can be used with 3/4" axle plates as well. They must be welded to the axle plates.
Free shipping to U.S. contiguous 48 states, DC, and APO/FPO/DPO addresses! Alaska and Hawaii rates displayed may not be correct (and may be too low) so please contact us for an accurate quote before ordering.
We ship all over the world frequently, but shipping is expensive because the parts are very heavy. Add the items you want to the shopping cart and use the shipping calculator in the cart for rates.
