Basic Motorcycle Frame Jig Kit (Welding Jig / Fixture)

Basic Motorcycle Frame Jig Kit (Welding Jig / Fixture)

Chop Source Motorcycle Frame Jig Kit - Basic

More Views

From: $299.95

To: $321.95

Price as configured: $299.95

5 Review(s) | Add Your Review

Availability: In stock

See description below.

Neck Fixture*

1 x Frame Jig Neck Fixture +$0.00

Axle Plate Fixture*

1 x Frame Jig Axle Plate Fixture +$0.00

Two Base Clamps*

2 x Frame Jig Base Clamp +$0.00

Choose 1018 Mild Steel or Stainless Steel Neck Cones*

Frame Jig Neck Cones - Steel - Pair +$0.00
Frame Jig Neck Cones - Stainless Steel - Pair +$22.00

Qty:

* Required Fields

Price as configured: $299.95

Qty:

| Add to Compare

Description

Details

The Chop Source Basic Frame Jig Kit includes the essential fixtures to get you started with building your motorcycle frame welding jig. You need to supply the 2"x3" or 2"x2" (1/8" wall) tubing for the jig. See the assembly instructions for the tubing cut list and information on using all 2"x2" or metric tubing. Structural tubing can be found at your local metal supply shop or welding/fabricating shop. The frame jig kit bolts together so you can easily reconfigure the jig, or break it down to store or move. No welding is required for the fixtures included in this kit. The neck fixture will accommodate rakes from 15 degrees to 60 degrees.

All fixture plates in the Basic Frame Jig Kit are powder coated black.

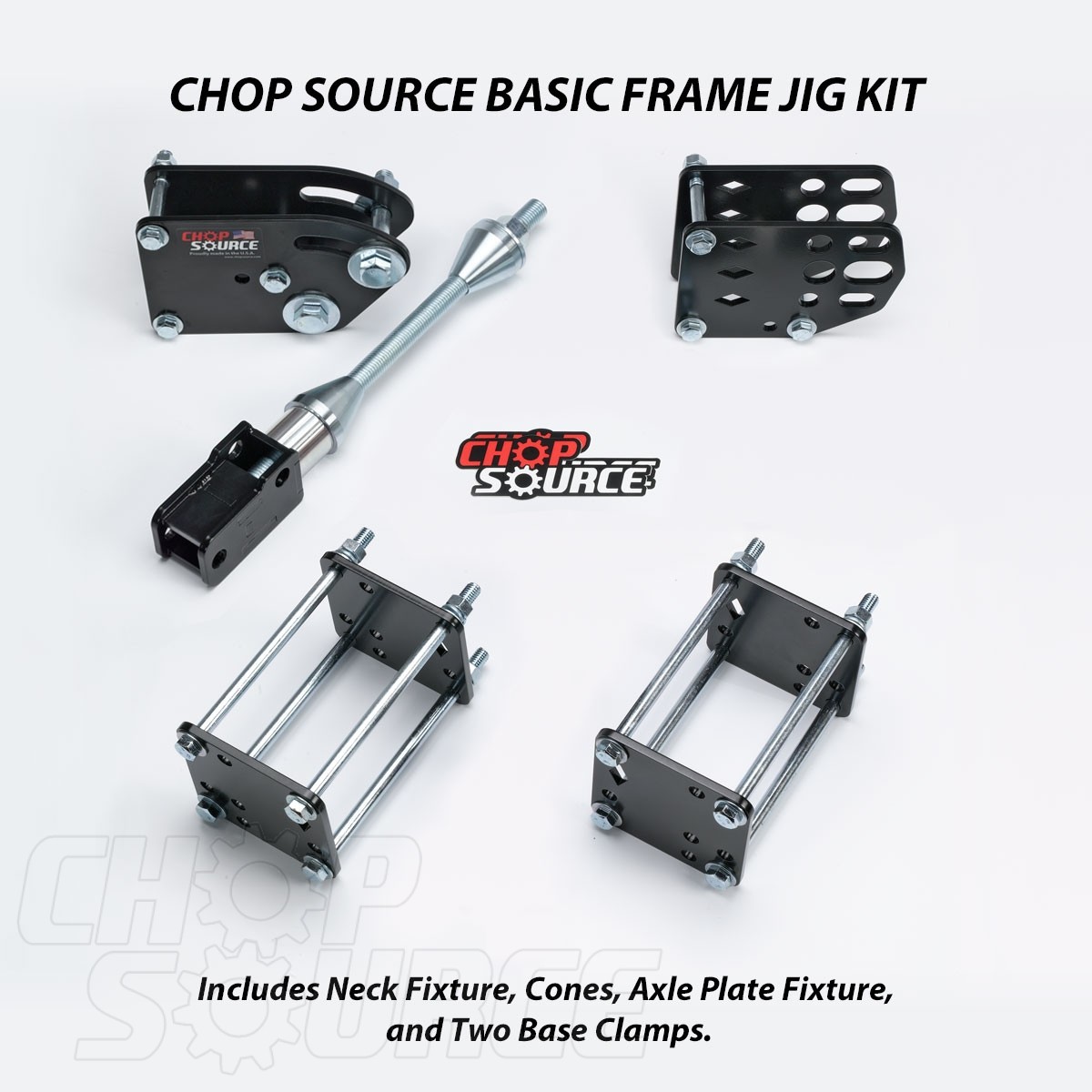

The Basic Frame Jig Kit Includes:

Basic Kit
- Neck Fixture (version 2.0)
- Axle Plate Fixture
- Two Base Clamps
- 1018 Mild Steel Neck Cones (can upgrade to stainless steel cones +$22).

MADE IN THE USA.

Need something more complete? Purchase the Full Frame Jig Kit.

Want your jig to have a dedicated stand and rotate for easier welding? Purchase this bundle, the Frame Jig Rotisserie Stand, and either the Feet Kit or Swivel Leveling Feet.

This item ships free to the contiguous United States! We ship worldwide frequently, but shipping is expensive because the parts are very heavy. Add the items you want to the shopping cart and use the shipping calculator in the cart for rates.

Download the Chop Source Motorcycle Frame Jig Plans / Assembly Instructions

Motorcycle Frame Jig and Rotisserie Stand Assembly Video by Rusty Van Ranch

Reviews

Customer Reviews 5 item(s)

Must buy this jig

Every thing you need. The quality the directions the shipping, the service of this company and their products are unbelievable. They really stand out. They thought of everything when they designed this.
Buy one and start building your frames

Rating

Review by Cycle Stash / (Posted on 11/23/2021)

it's a fantastic kit !

It's exactly what i need for my frame modification , the quality of the product is perfect , and many thanks for the excellent service and communication and the super fast delivery +++

Rating

Review by Bert from France / (Posted on 7/18/2020)

Great product. Highly recommend.

I'm using this setup to do an engine swap on my bike and could not be happier. Product is great and finished well at a great price. Wouldn't have been able to complete my project without it.

Rating

Review by Noisy Cricket / (Posted on 1/8/2018)

Excellent!

GREAT kit. well made, well presented and well finished. Really happy that I selected this kit.

Rating

Review by PHILIP / (Posted on 11/15/2017)

Highly recommend

The basic essentials for a frame jig is all in this kit. Nothing fancy about it, just pick up a stick of 11guage 2x3, cut to length and assemble. I was seriously done with it in less then 30 minutes. I've already bent up a frame using it!
