Mini Bike Frame Jig Kit (Welding Jig / Fixture, Minibike)

Mini Bike Frame Jig Kit (Welding Jig / Fixture, Minibike)

More Views

Mini Bike Frame Jig Kit (Welding Jig / Fixture, Minibike)

From: $319.95

To: $381.95

Price as configured: $319.95

Availability: In stock

See description below.

Neck Fixture*

1 x Frame Jig Neck Fixture +$0.00

Rear Axle Fixture*

1 x Rear Axle Fixture (for Bicycle and Mini Bike Frame Jigs) +$0.00

Two Base Clamps*

2 x Frame Jig Base Clamp +$0.00

Choose 1018 Mild Steel or Stainless Steel Neck Cones*

Frame Jig Neck Cones - Steel - Pair +$0.00
Frame Jig Neck Cones - Stainless Steel - Pair +$22.00

Qty:

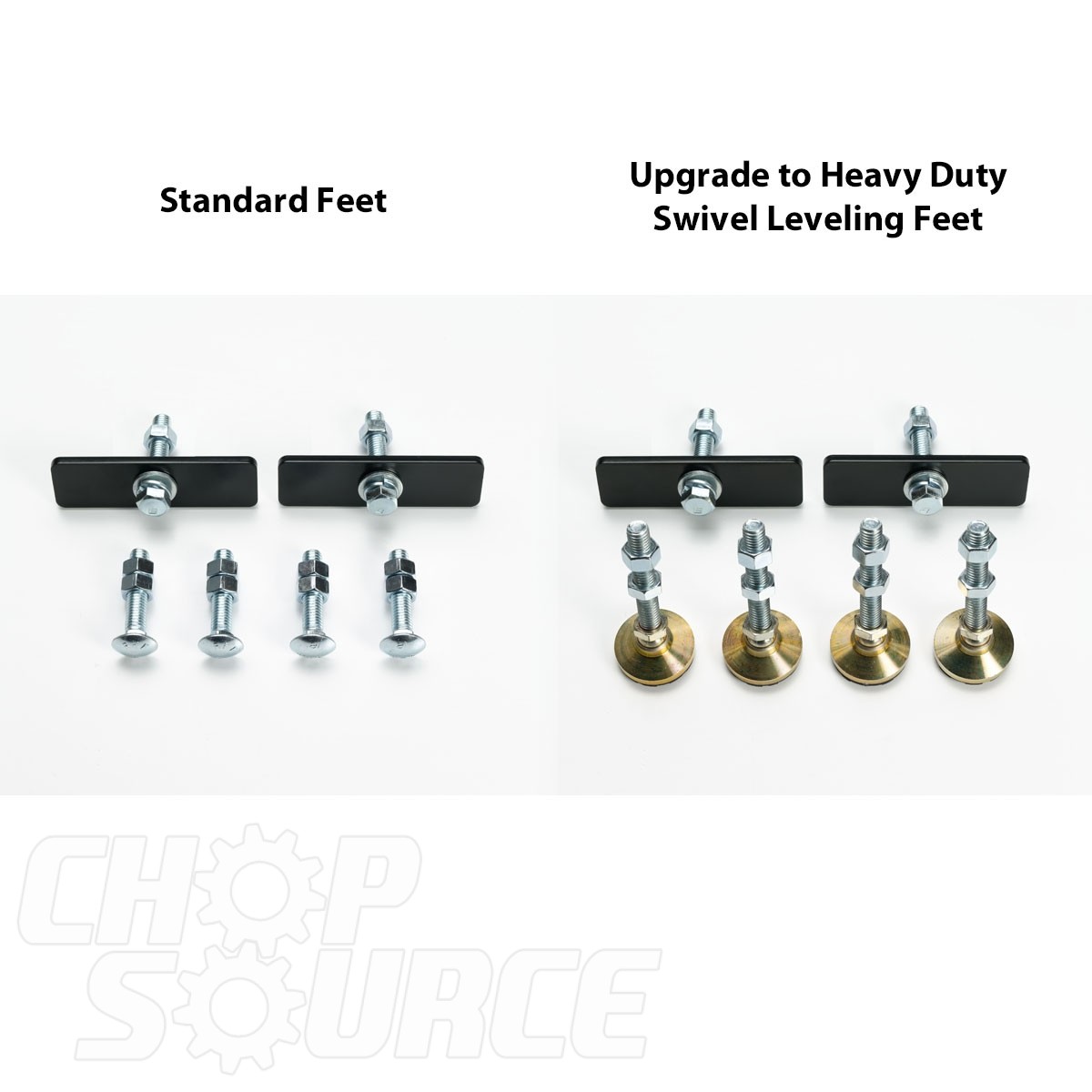

Choose Standard Feet or Heavy Duty Swivel Leveling Feet*

Frame Jig Feet +$0.00
Frame Jig Swivel Leveling Feet +$40.00

Qty:

Clamp Bar and Hardware*

Clamp Bar and Hardware +$0.00

Qty:

* Required Fields

Price as configured: $319.95

Qty:

| Add to Compare

Description: Details

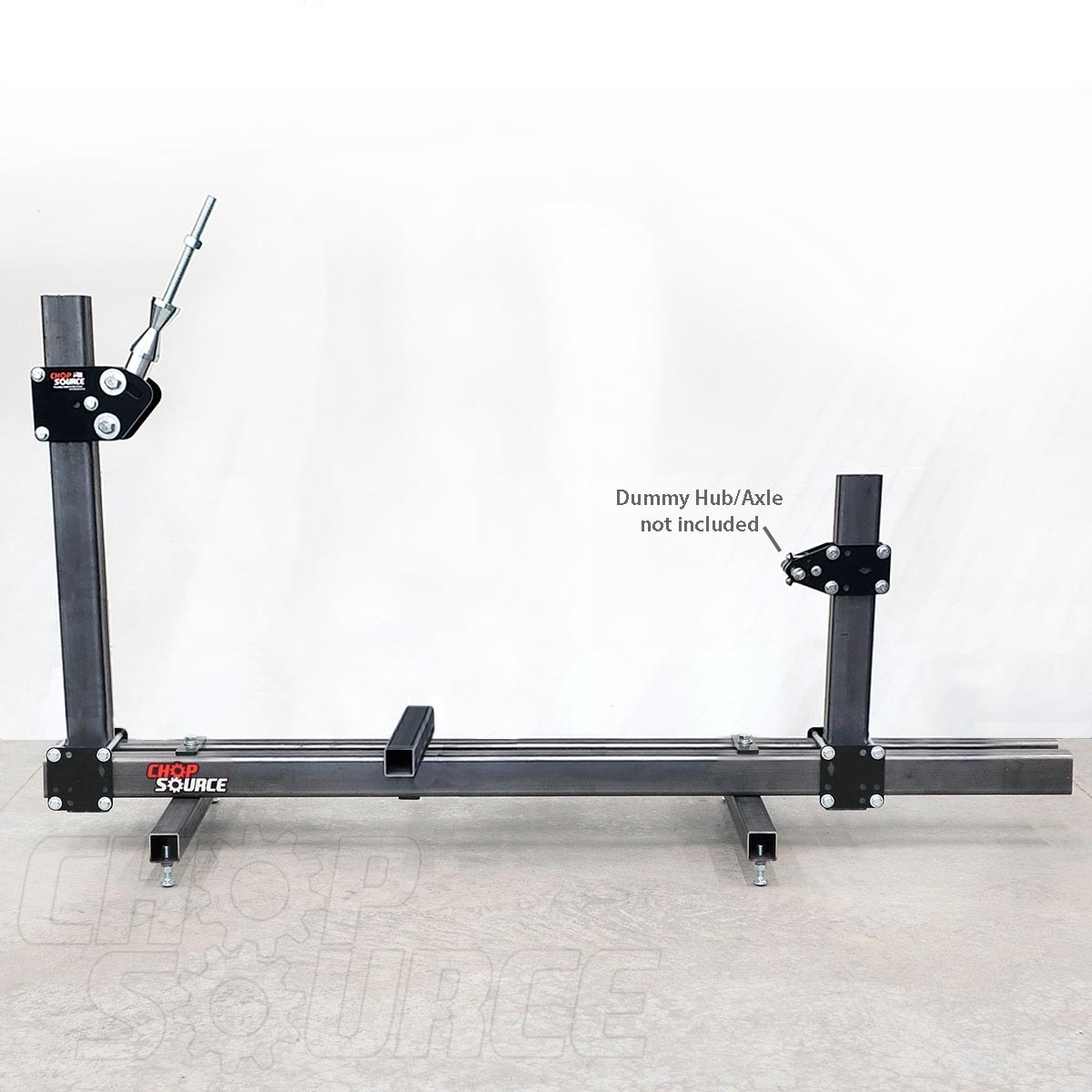

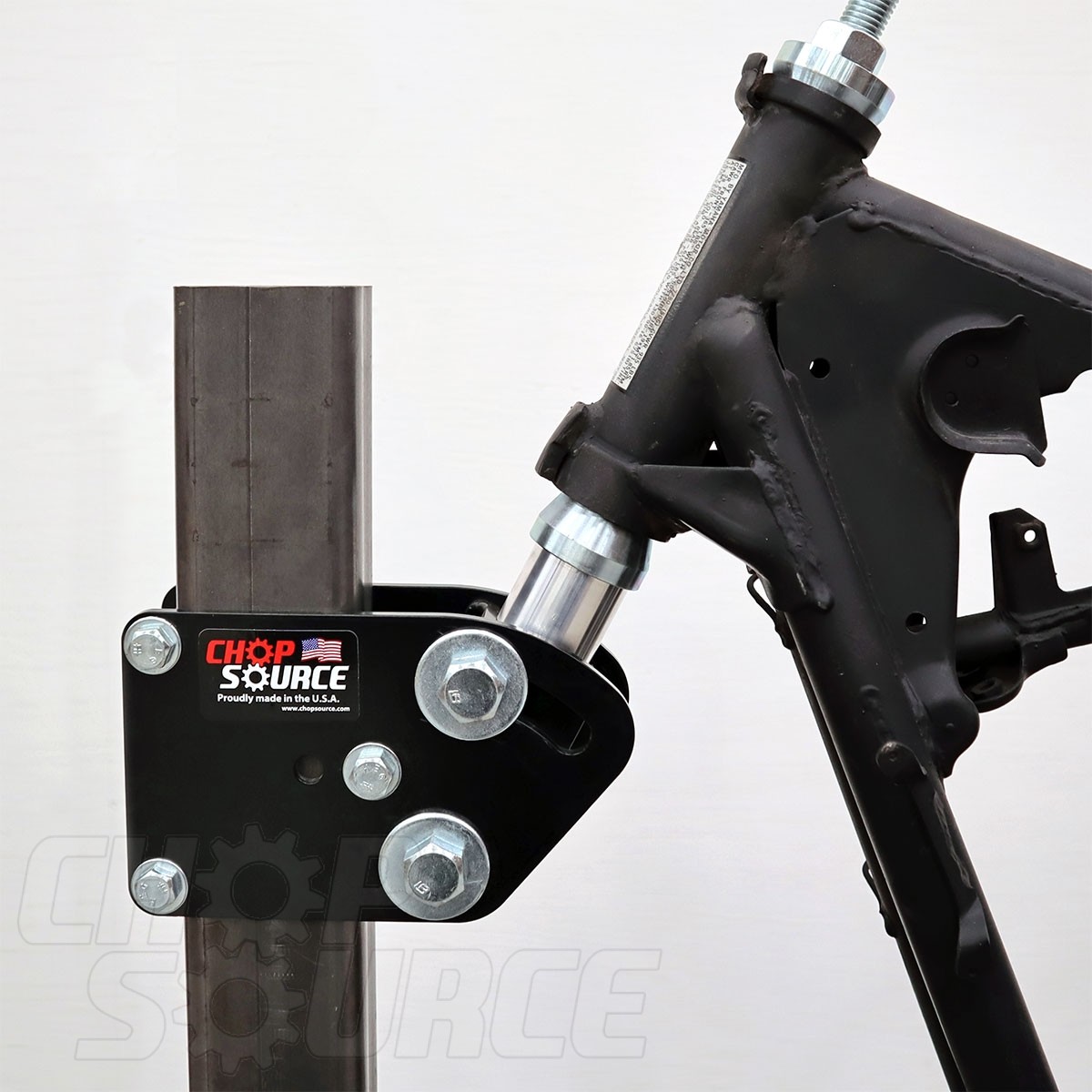

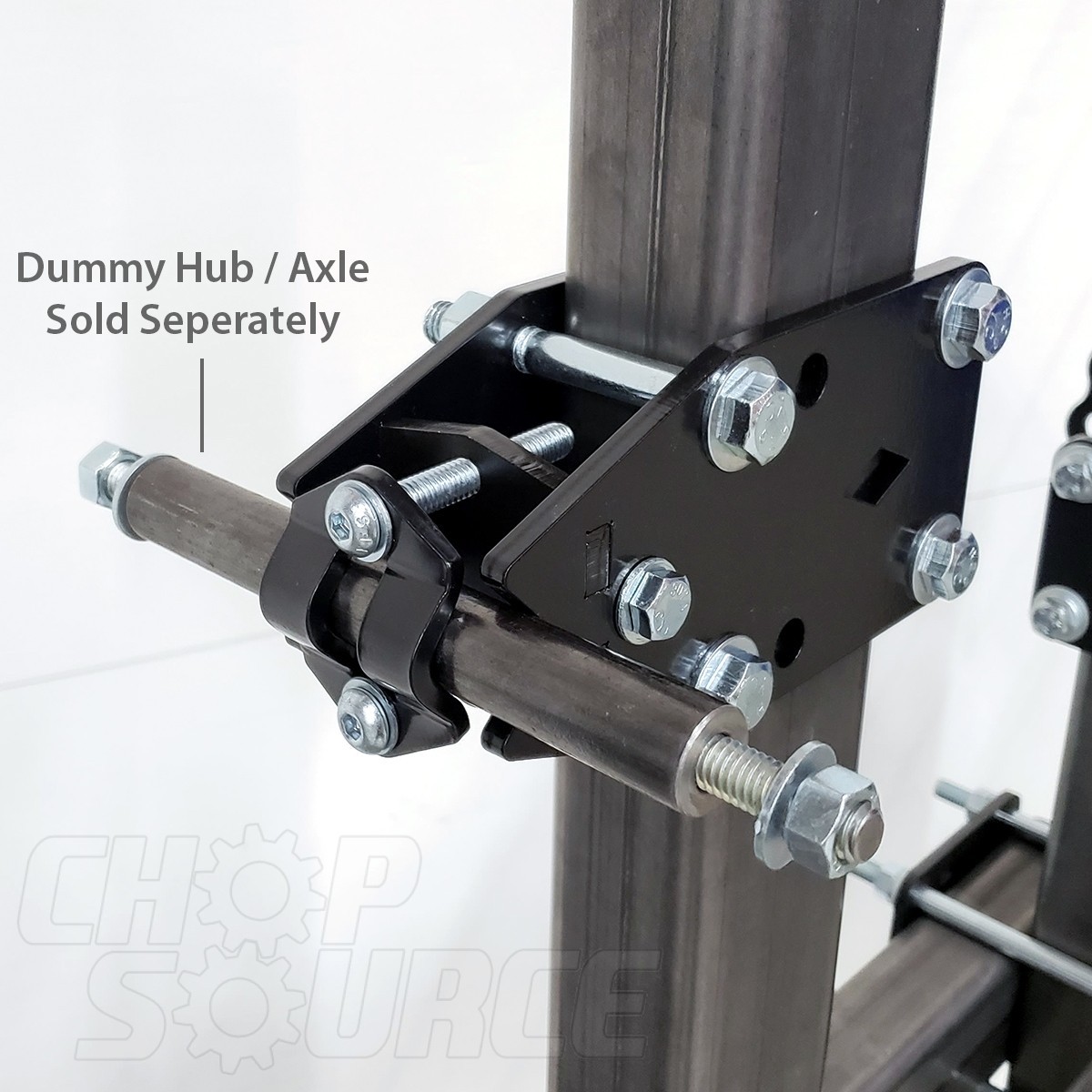

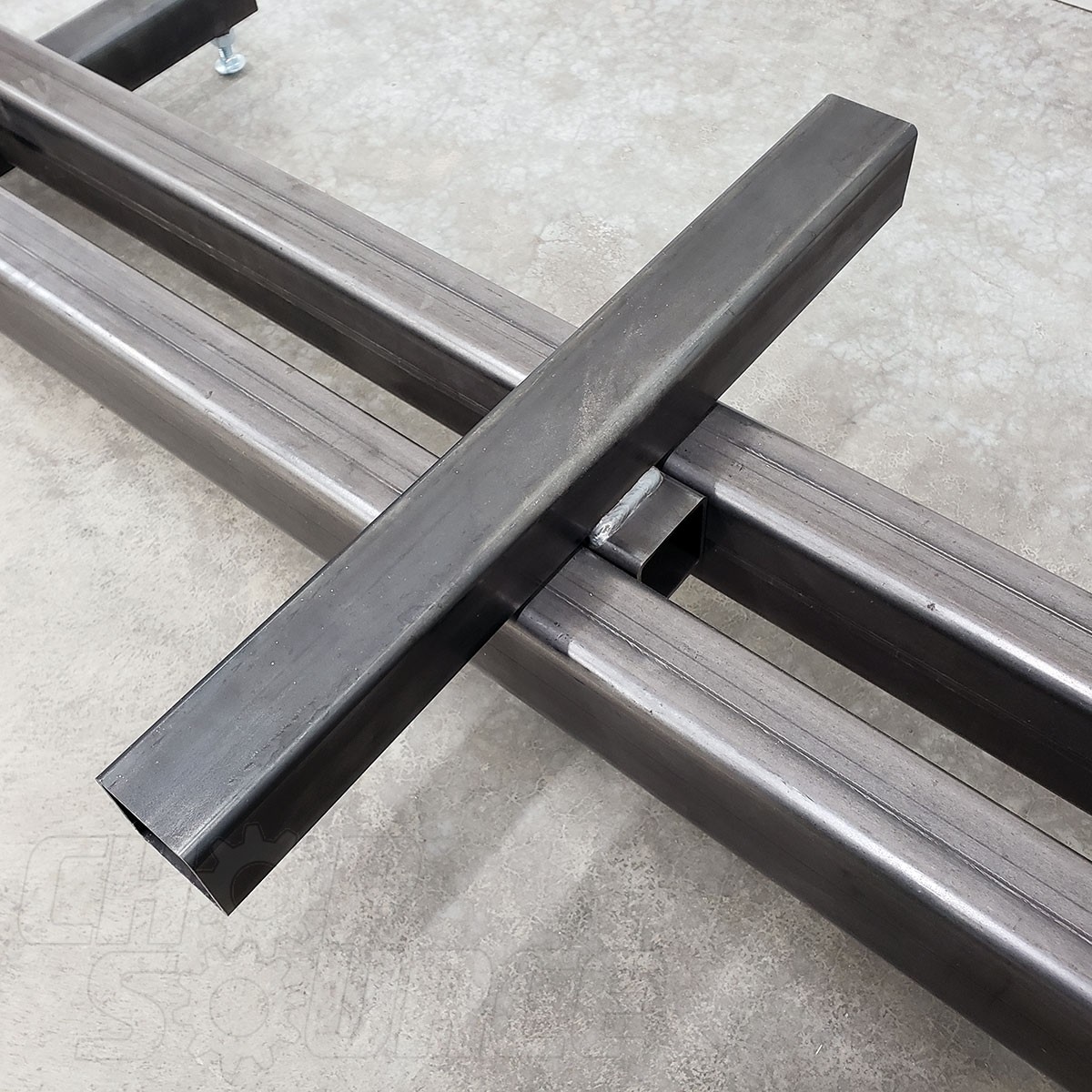

The Chop Source Full Frame Jig Kit includes all of the fixtures and hardware you need to get your mini bike frame jig (welding jig) started. You need to supply 17' of 2"x3" (1/8" wall) tubing and 6.5' of 2"x2" (1/8" wall) tubing for the jig to be assembled as shown. See the assembly instructions for the tubing cut list and information on using all 2"x2" or metric tubing. Structural tubing can be found at your local metal supply shop or welding/fabricating shop. The frame jig kit bolts together so you can easily reconfigure the jig or break it down to store or move. The neck fixture will accommodate rakes from 15 degrees to 60 degrees. The neck fixture was designed for motorcycles and the cones taper from 2" to 7/8". Some mini bikes have a smaller neck and won't work with this fixture and cones. The Rear Axle Fixture can be used to hold an axle, dummy axle, or tubing from .3" to 1-1/4" in diameter. It can also be used to directly hold a live axle.

All fixture plates in the Full Frame Jig Kit are laser cut from 1/4" mild steel and are powder-coated black.

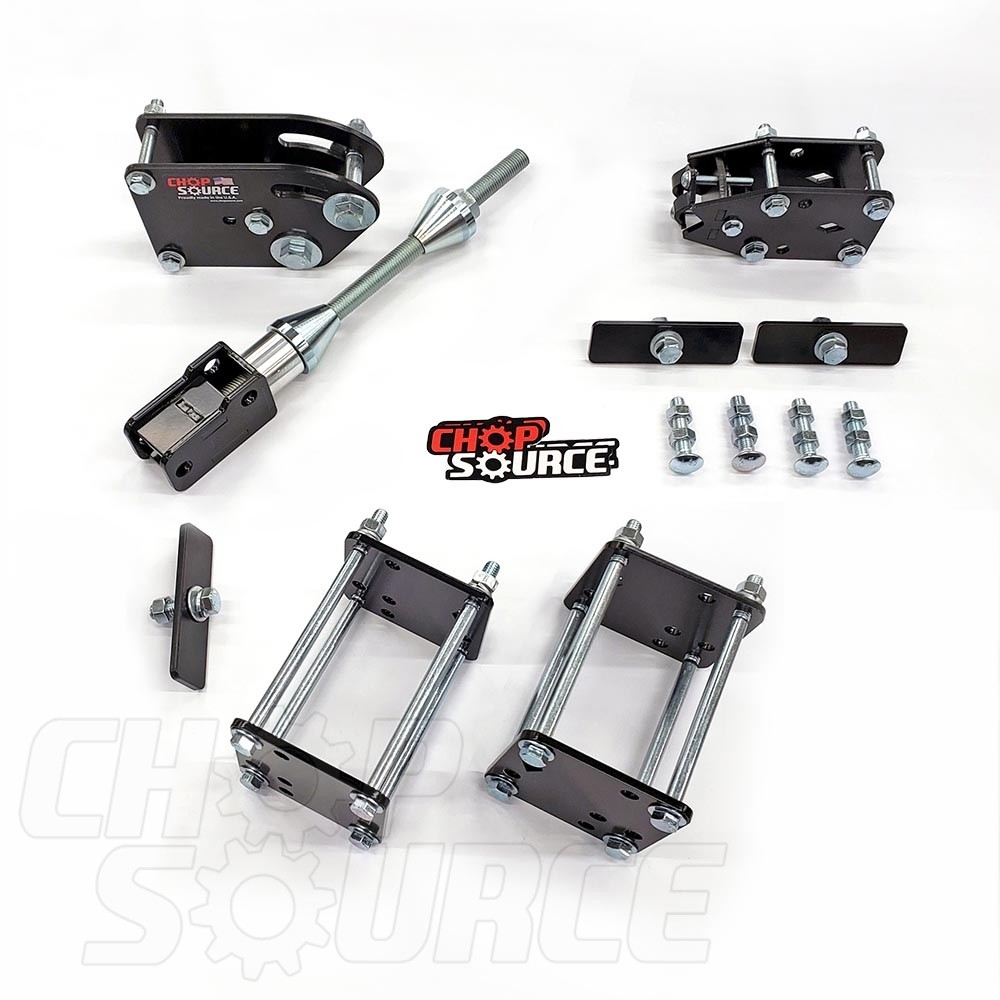

The Full Frame Jig Kit Includes:

- Neck Fixture (version 2.0)
- 1018 Mild Steel Neck Cones (can upgrade to stainless steel cones +$22).
- Rear Axle Fixture
- Two Base Clamps
- Clamp Bar and hardware (to hold perpendicular tubing under the frame)

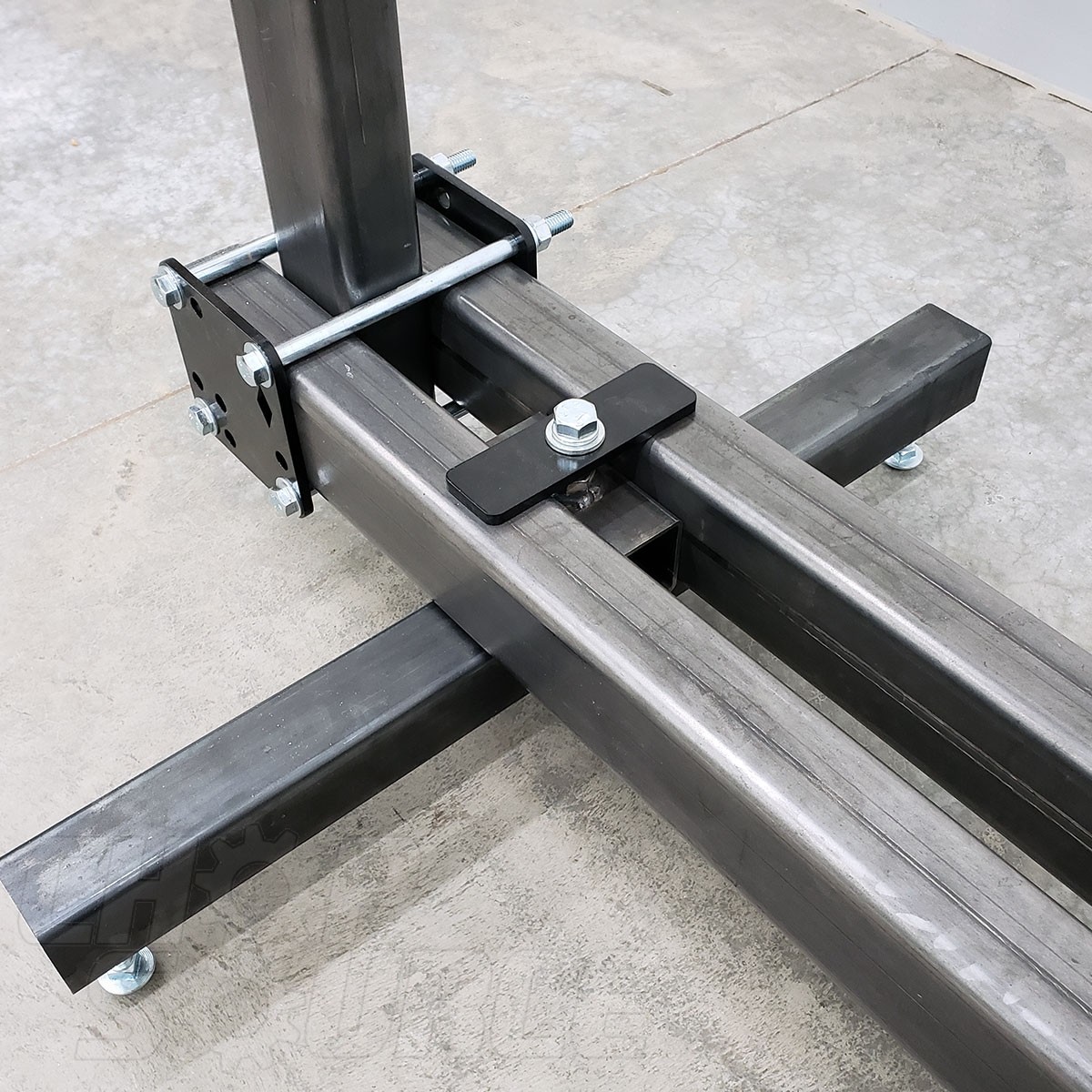

- Feet Kit (can upgrade to Swivel Leveling Feet +$40)

MADE IN THE USA.

Want your jig to have a dedicated stand and rotate for easier welding? Purchase this bundle and the Frame Jig Rotisserie Stand.

This item ships free to the contiguous United States! We ship worldwide frequently, but shipping is expensive because the parts are very heavy. Add the items you want to the shopping cart and use the shipping calculator in the cart for rates.

Download the Chop Source Mini Bike Frame Jig Assembly Instructions

Motorcycle Frame Jig and Rotisserie Stand Assembly Video by Rusty Van Ranch
Reviews: Be the first to review this product
