Rear Axle Fixture (for Bicycle and Mini Bike Frame Jigs)

More Views

Rear Axle Fixture (for Bicycle and Mini Bike Frame Jigs)
$57.95
Description

Details

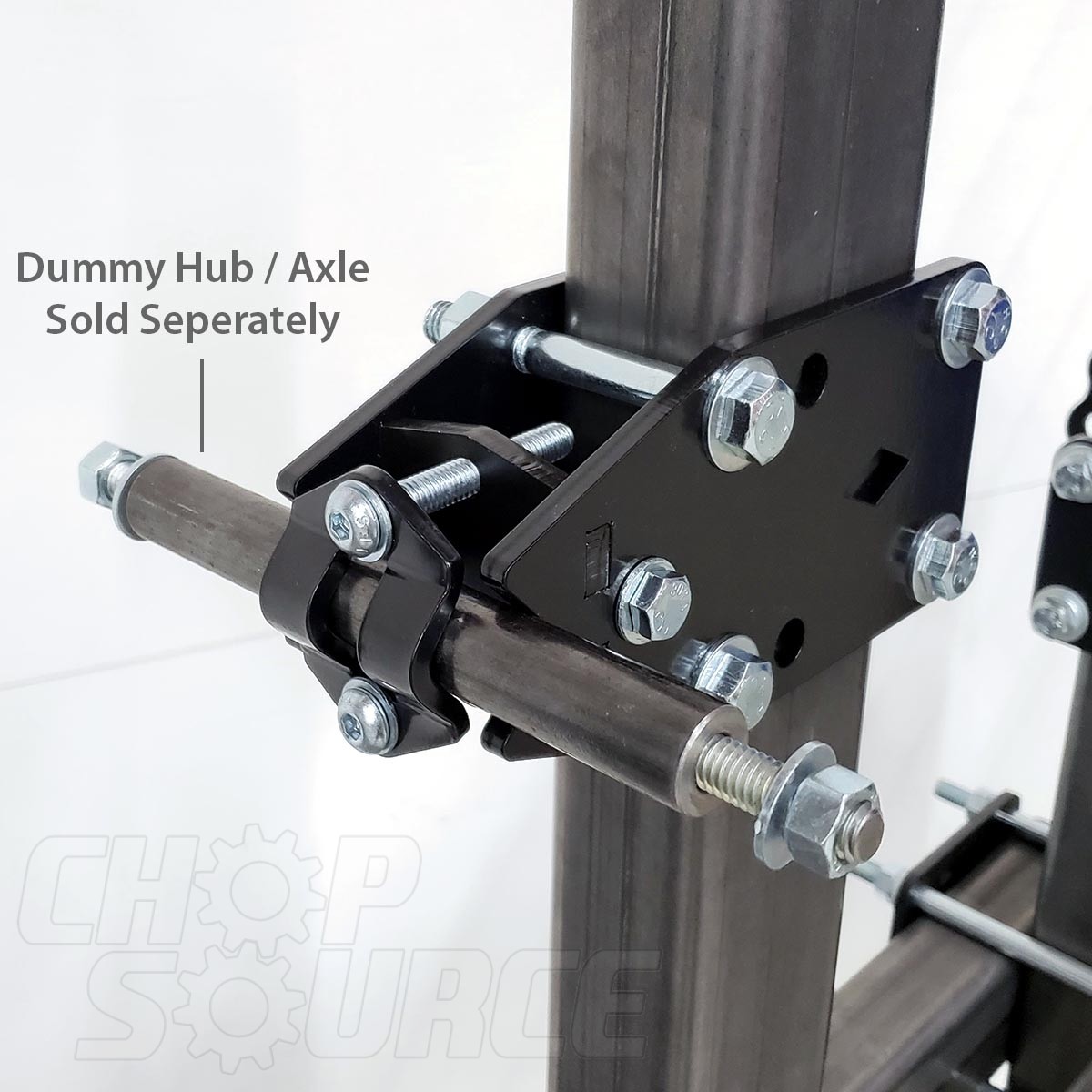

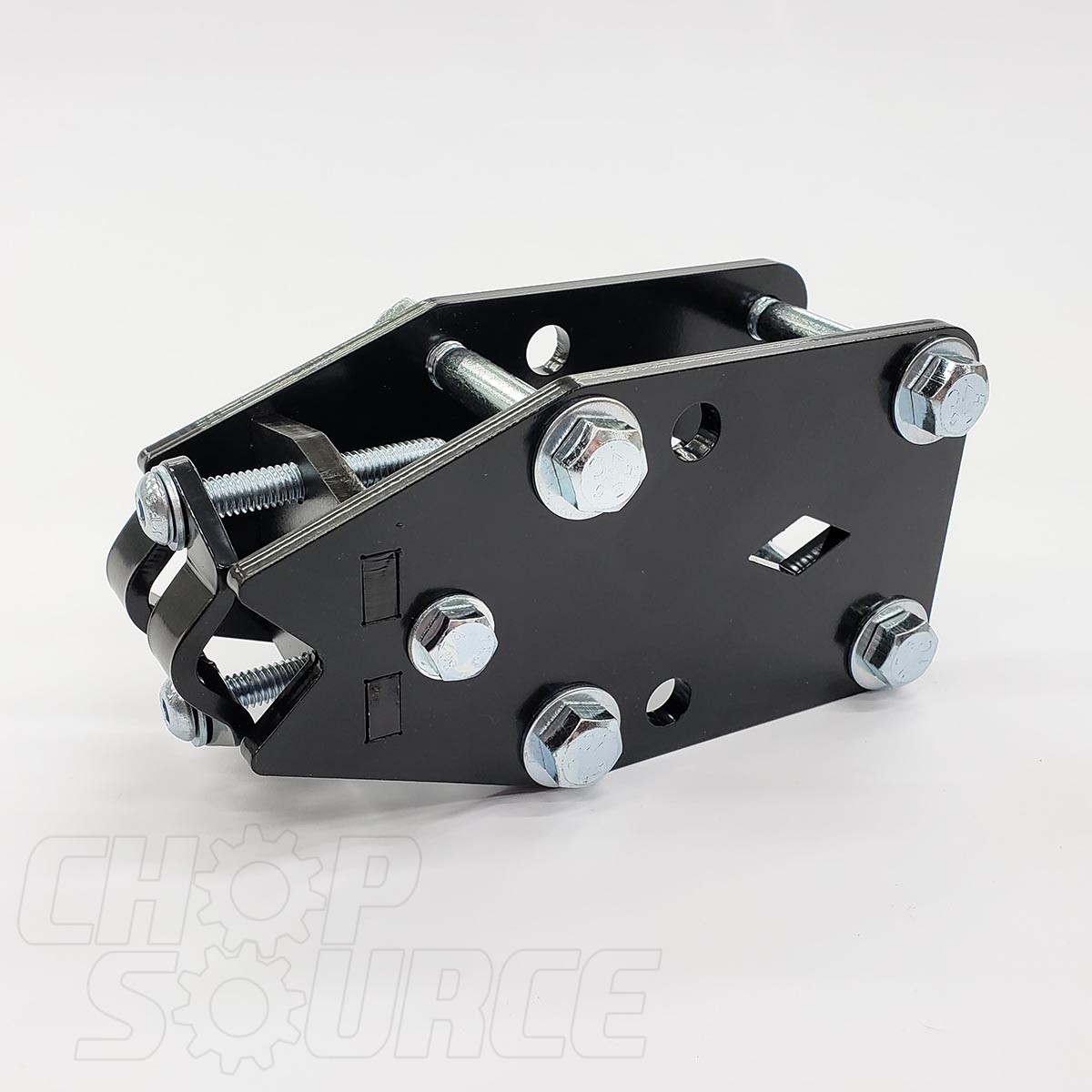

Rear Axle Fixture for Bicycle and Mini Bike Frame Jigs (this was formerly called the dropout fixture). This is popular for bicycles because it can hold many brands of dummy axles. This is popular for mini bikes because it can be used to hold a variety of sizes of solid axles, live axles, tubing, shafts, and threaded rod. This can also be used for motorcycles if you want to support the motorcycle axle plates using one piece of threaded rod instead of two, or want to make one large dummy hub/axle with tubing.

Clamp size .3" to 1.25" (tubing, axle, dummy axle/hub, round bar, shaft, or threaded rod).

If you order this separately and not in a bundle, depending on your frame jig design, you may need to also order a Base Clamp so that you can move the upright that this mounts to back and forth along the main rails of the jig.

Reviews

Customer Reviews 2 item(s)

Swing arm dropout AAAA++++ Motorcyle or Bicycle
Great fixture I was able to use this on my frame for a mounting point for the swing arm. Really helped could not have done it without Chop source .
You guys Rock
Rating
Review by Cycle Stash / (Posted on 11/23/2021)
One of my favorite fixtures.
One of my favorite features of this frame jig, the rear drop out fixture. Easy access when fabricating, and the dummy axles are key! Can be ordered to any dropout spacing with easy quick switch. Be sure to check those out and order along with this fixture! You won’t be sorry.
Rating
Review by Peek Cycles / (Posted on 6/3/2020)
