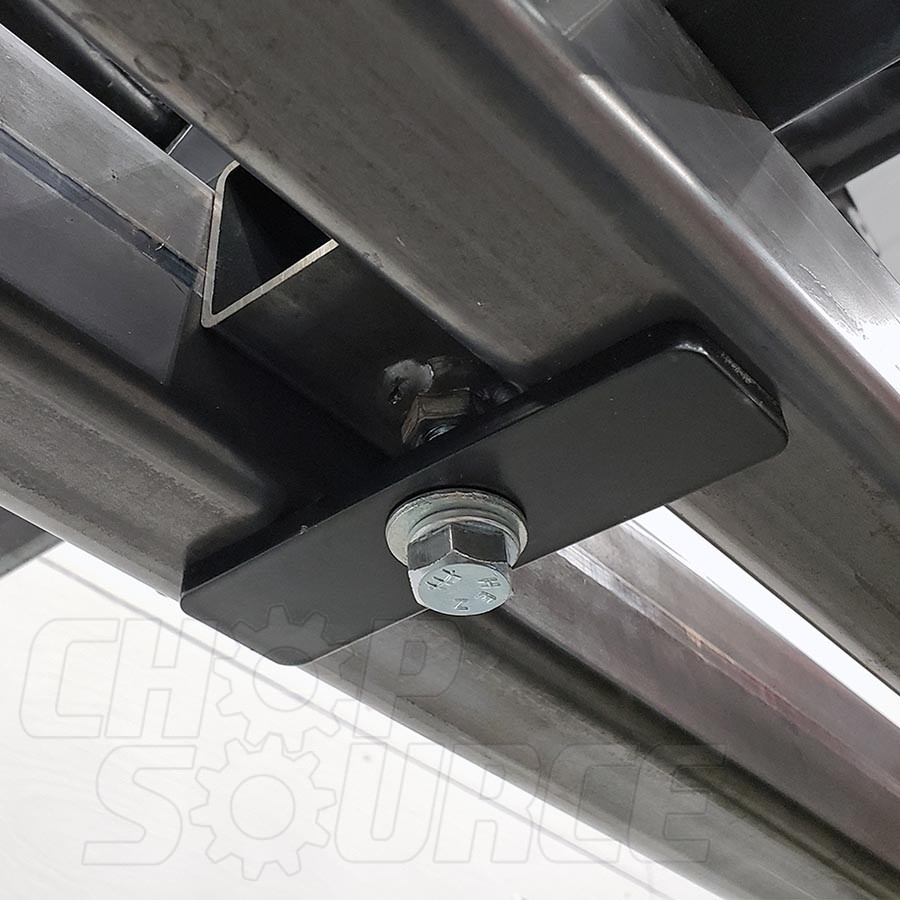

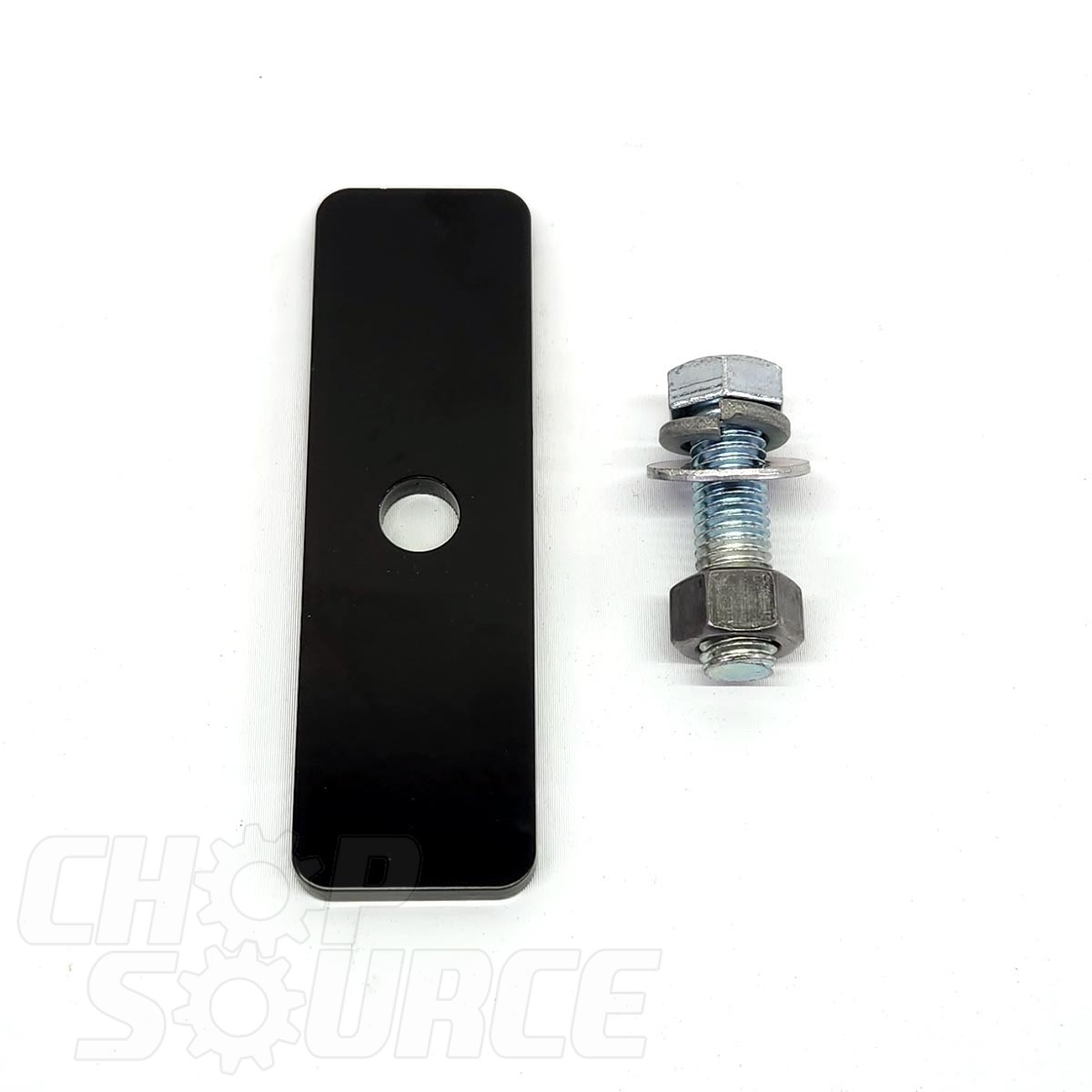

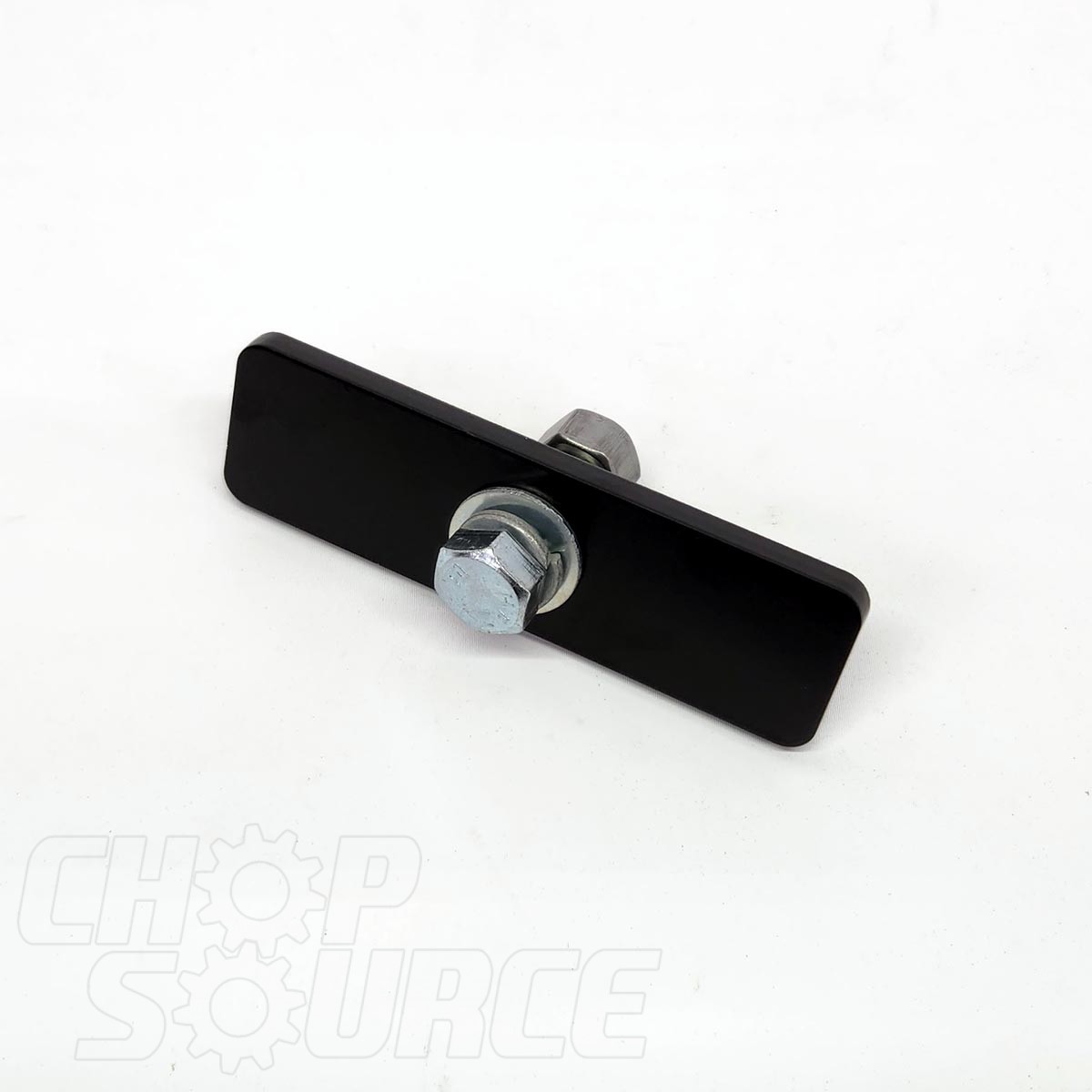

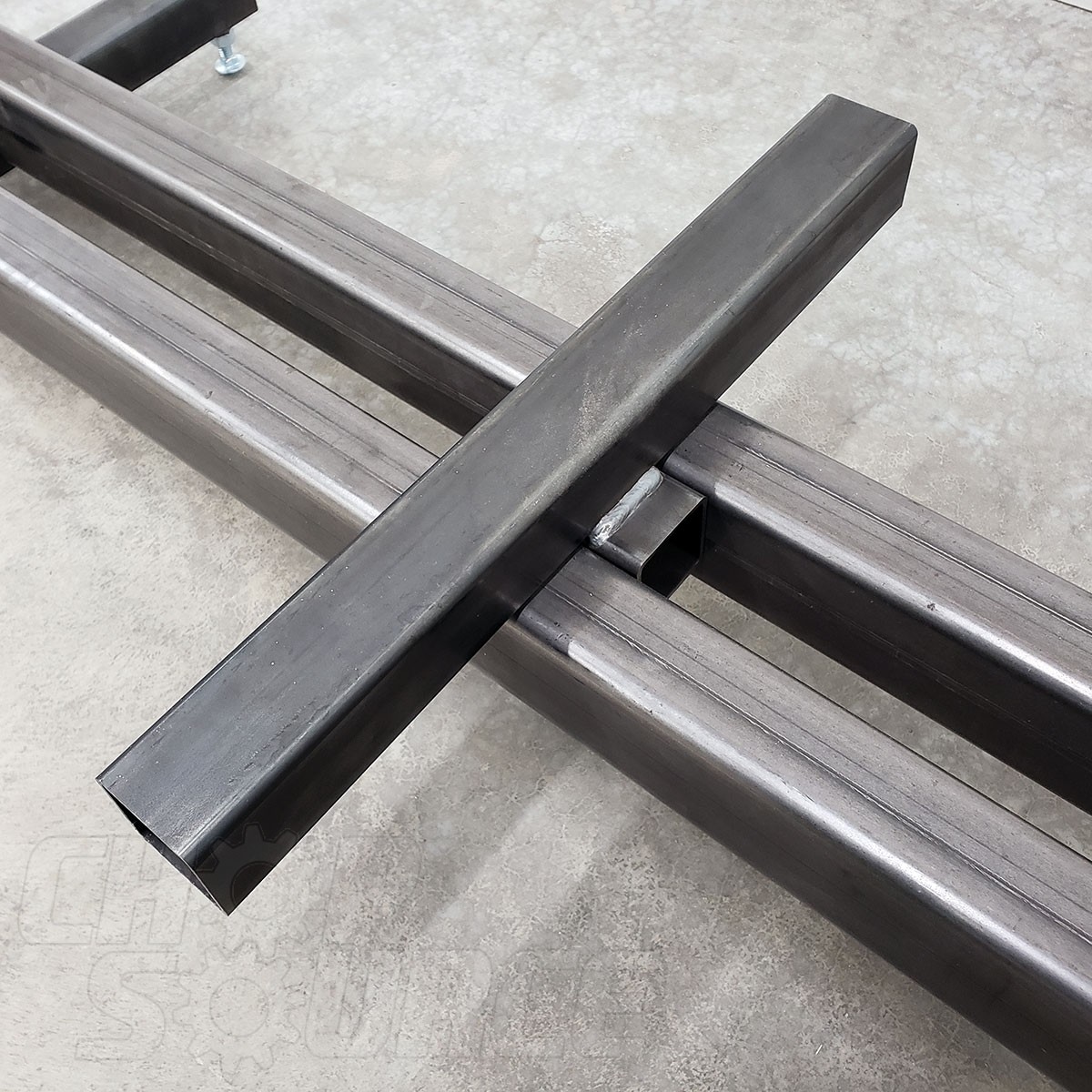

DetailsSingle Clamp Bar and Hardware. This is used to hold a piece of tubing perpendicular to the main rails of the frame jig to rest your frame on. This is also used in both feet kits, the adjustable width fixture, and the bottom bracket fixture. You supply the 2"x2" square steel tubing to make this support and the clamp bar holds it to the frame jig. You could use two of these fixtures to support frames with long horizontal lower tubes like those commonly found on ATV and mini bike frames. The frame can be held with c-clamps, v-blocks, two-piece shaft collars welded to the tube, locating pins, etc.
