Bicycle Frame Jig/Fixture Centering Cone Set - Steel

More Views

Bicycle Frame Jig/Fixture Centering Cone Set - Steel
$124.95

Price as configured: $124.95

Availability: In stock

1 x Head Tube Cones (for Bicycle Frame Jig) - Steel - Pair   +$0.00
1 x Bicycle Frame Jig/Fixture Bottom Bracket Cone Set - Steel   +$0.00
1 x Bicycle Frame Jig/Fixture Seat Tube Cone - Steel   +$0.00

* Required Fields

Price as configured: $124.95

Description

Details

Dedicated fixtures for bicycles will be coming mid to late January 2020! We will have a bottom bracket fixture, rear dropout fixture, and seat tube fixture. We will also have a bicycle frame jig kit available and everyone who purchases this set of 5 cones will receive a discount code by email for the kit.

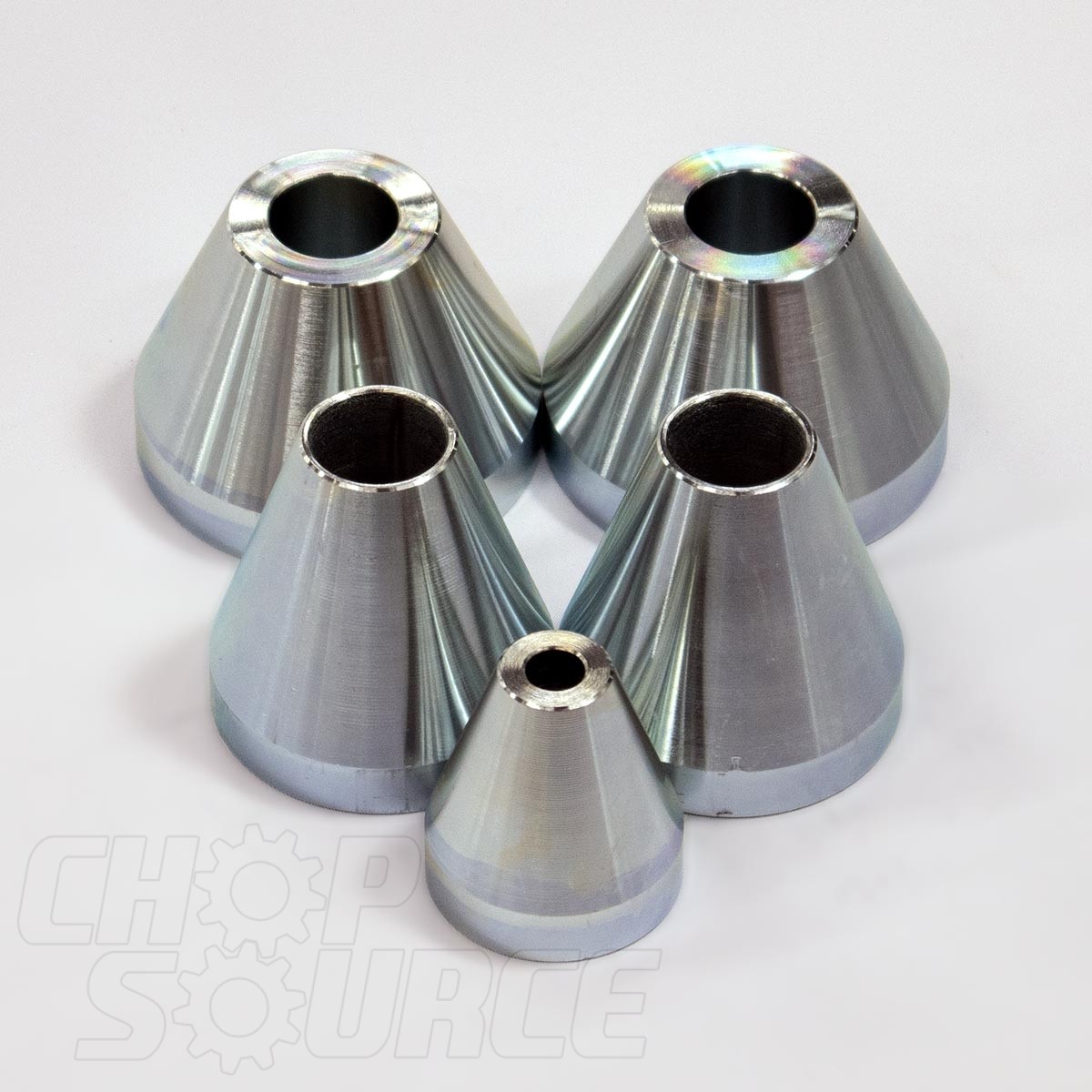

Set of five centering cones to build a bicycle frame welding jig/fixture.

The two larger cones are for the bottom bracket, the medium cones are for the head tube, and the small cone is for the seat tube.  You will need to determine if these will work for your bicycle frame jig build.

Bicycle Frame Jig/Fixture Centering Cones:

  • Used for your custom bicycle frame jig.
  • Zinc plated 1018 cold rolled steel.
  • CNC manufactured to precise tolerances.

Head Tube Cones:

  • Smooth bored to slide over 3/4" threaded rod or shaft.
  • 2" large O.D.
  • .875" small O.D.

Bottom Bracket Cones:

  • Smooth bored to slide over 3/4" threaded rod or shaft.
  • 2.45" large O.D.
  • 1.25" small O.D.
  • Flatter taper so cones fully seat without contacting each other in large and narrow bottom brackets.

Seat Tube Cone:

  • Smooth bored for 5/16" or 8mm through bolt.
  • 1.45" large O.D.
  • .625" small O.D.

MADE IN THE USA.

This item ships free to the contiguous United States!
