Description

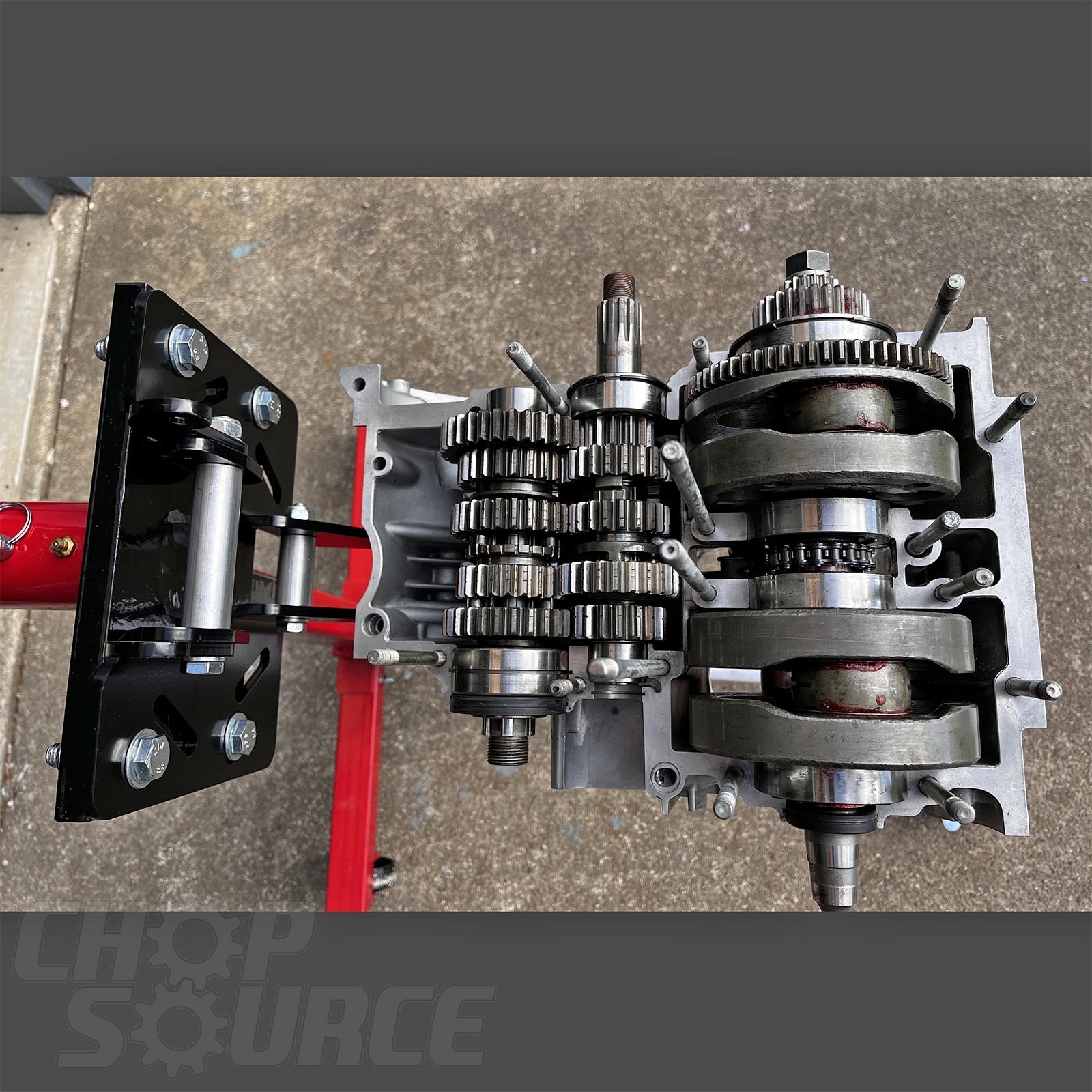

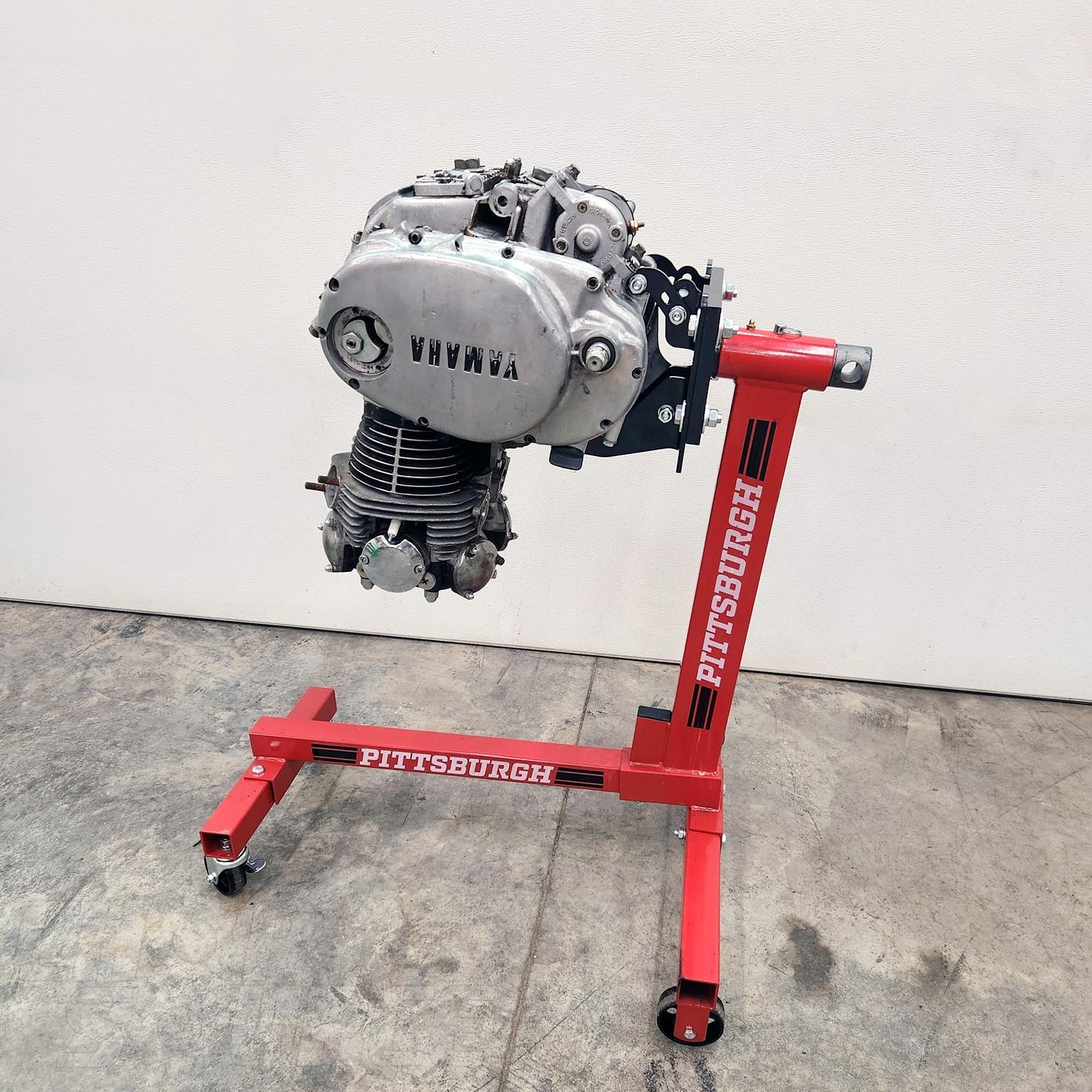

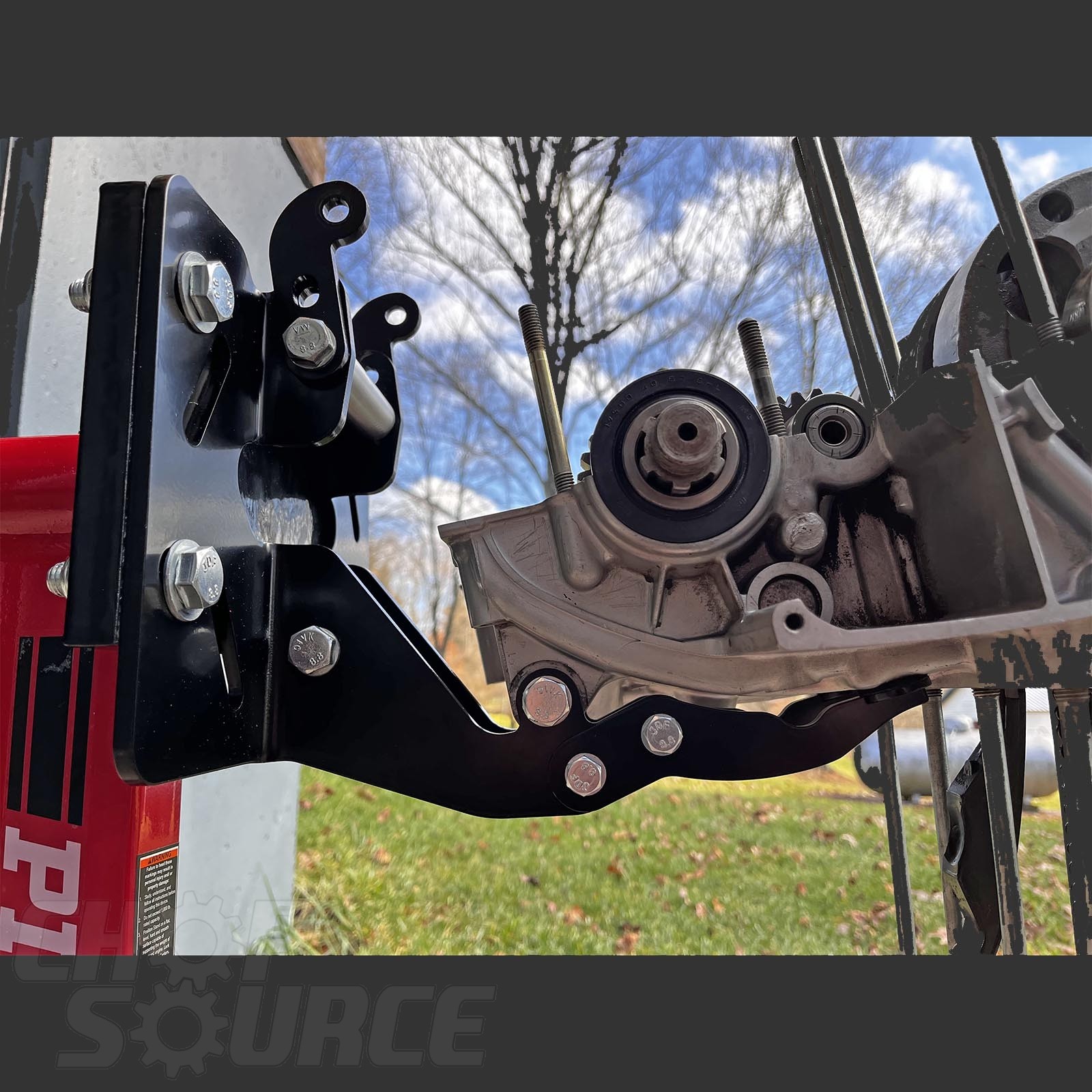

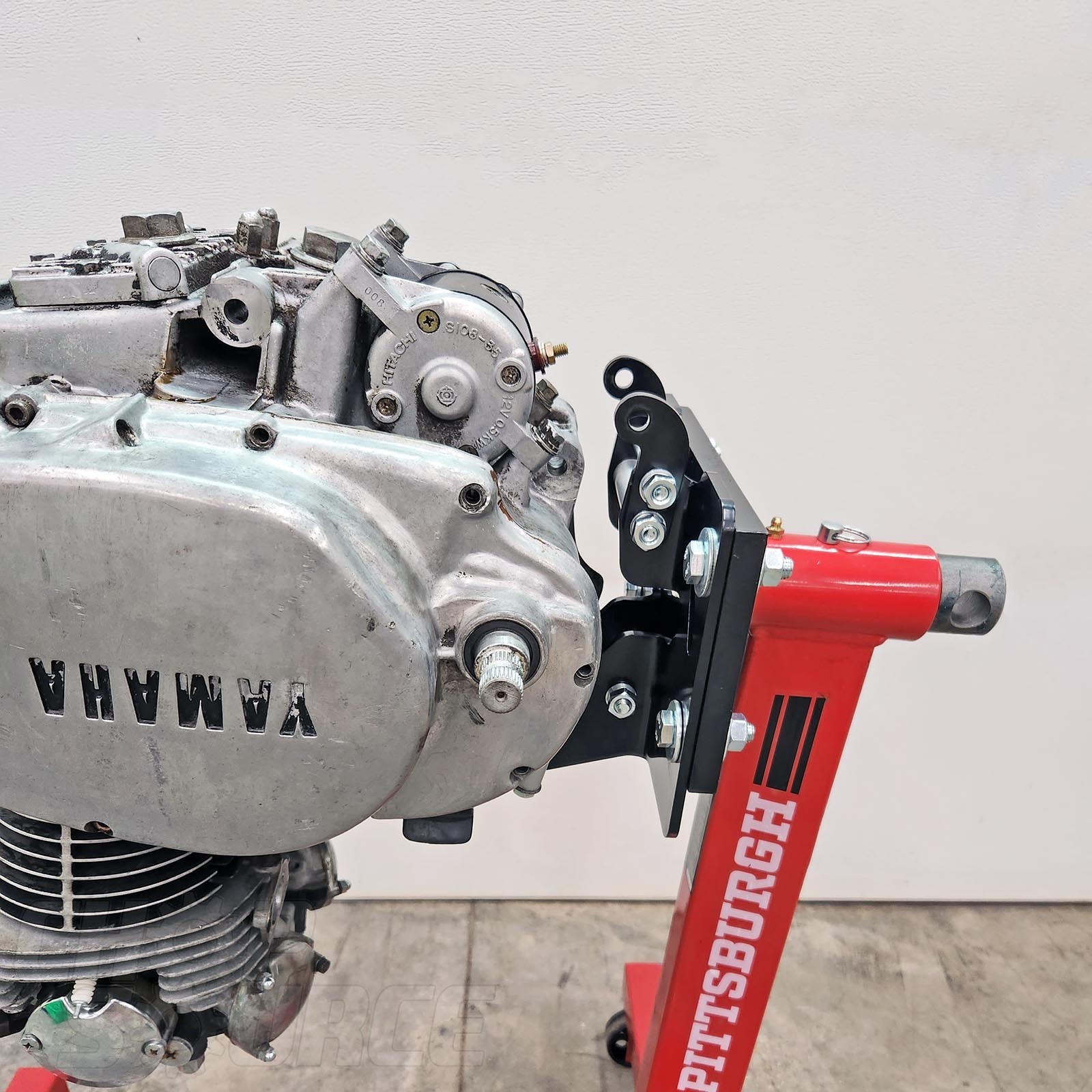

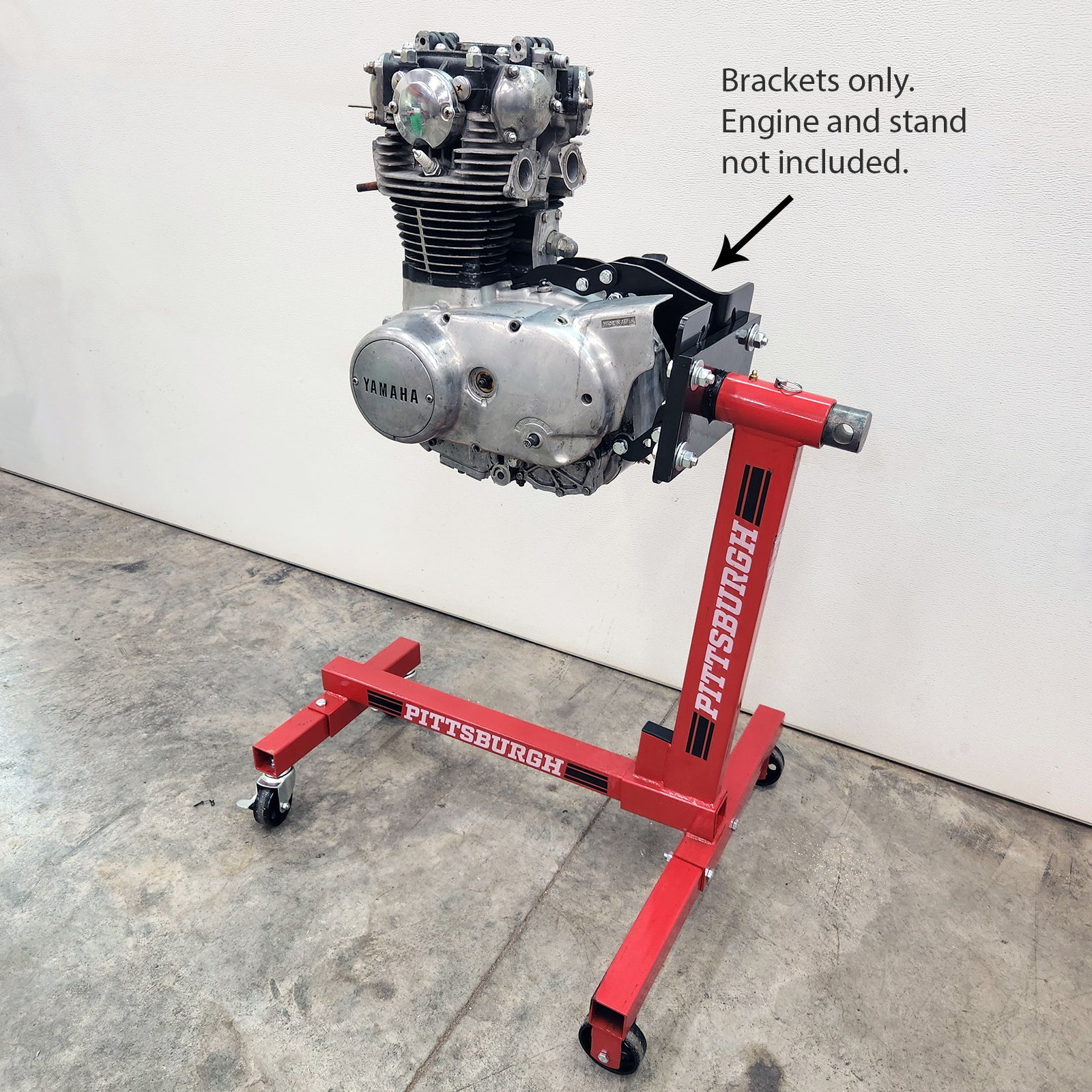

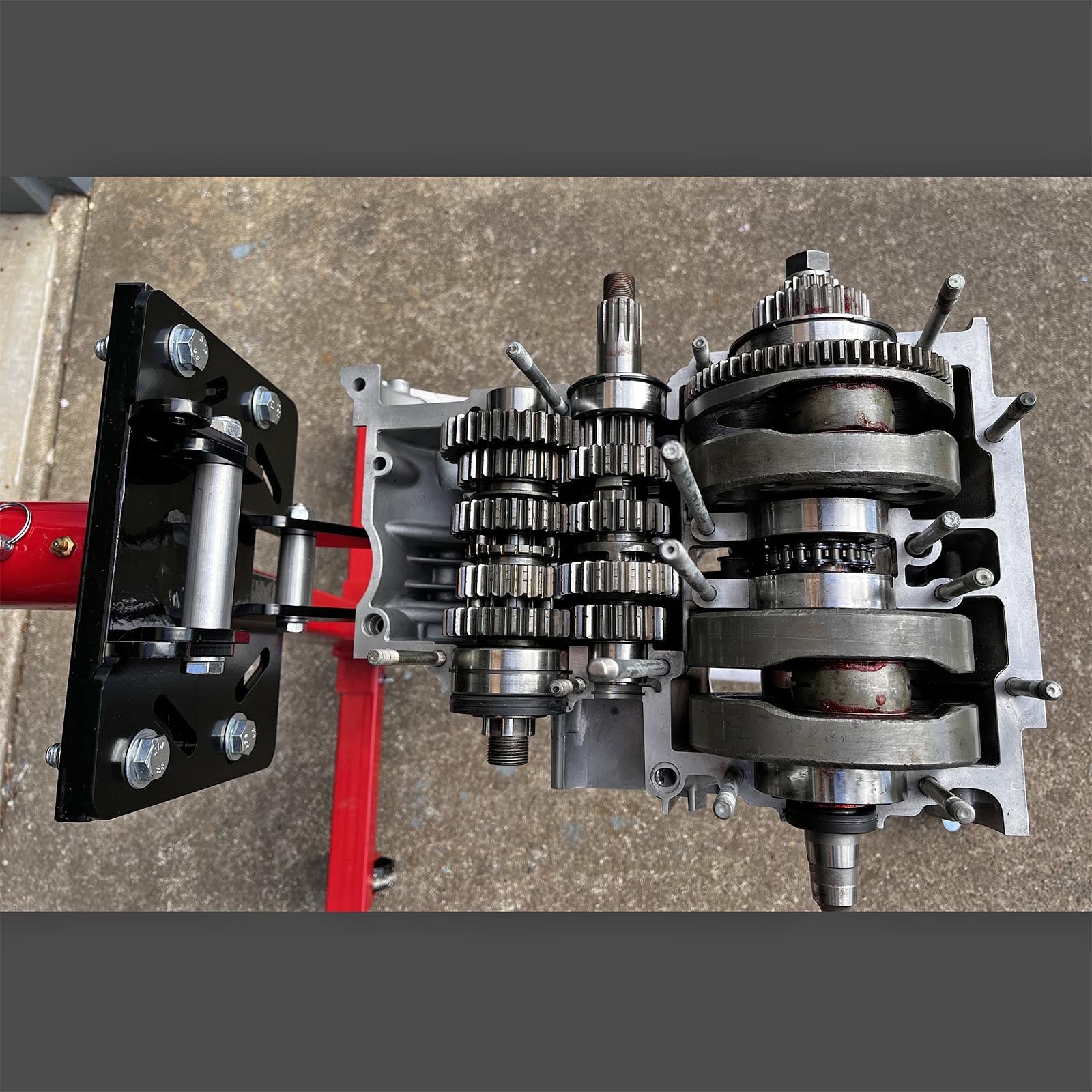

This is the new deluxe version of our Yamaha XS650 Engine Stand Brackets. It is used to mount your XS650 engine to a standard car engine stand and allows the engine to be rotated upside down to split the cases. To do this, support arms are added, and the engine is spun upside down on the stand, then the "lower links" are able to pivot out of the way to allow you to split the case halves. The support arms are only needed when turning the engine over. These brackets are great for engine rebuilding or for making an engine test stand.

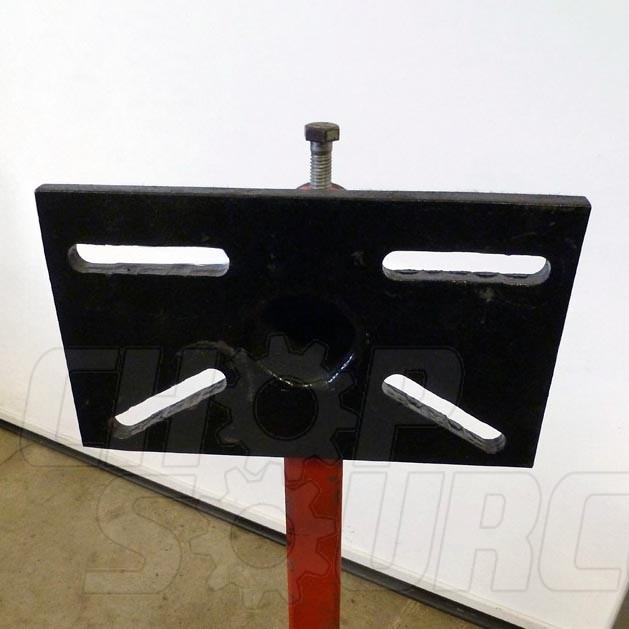

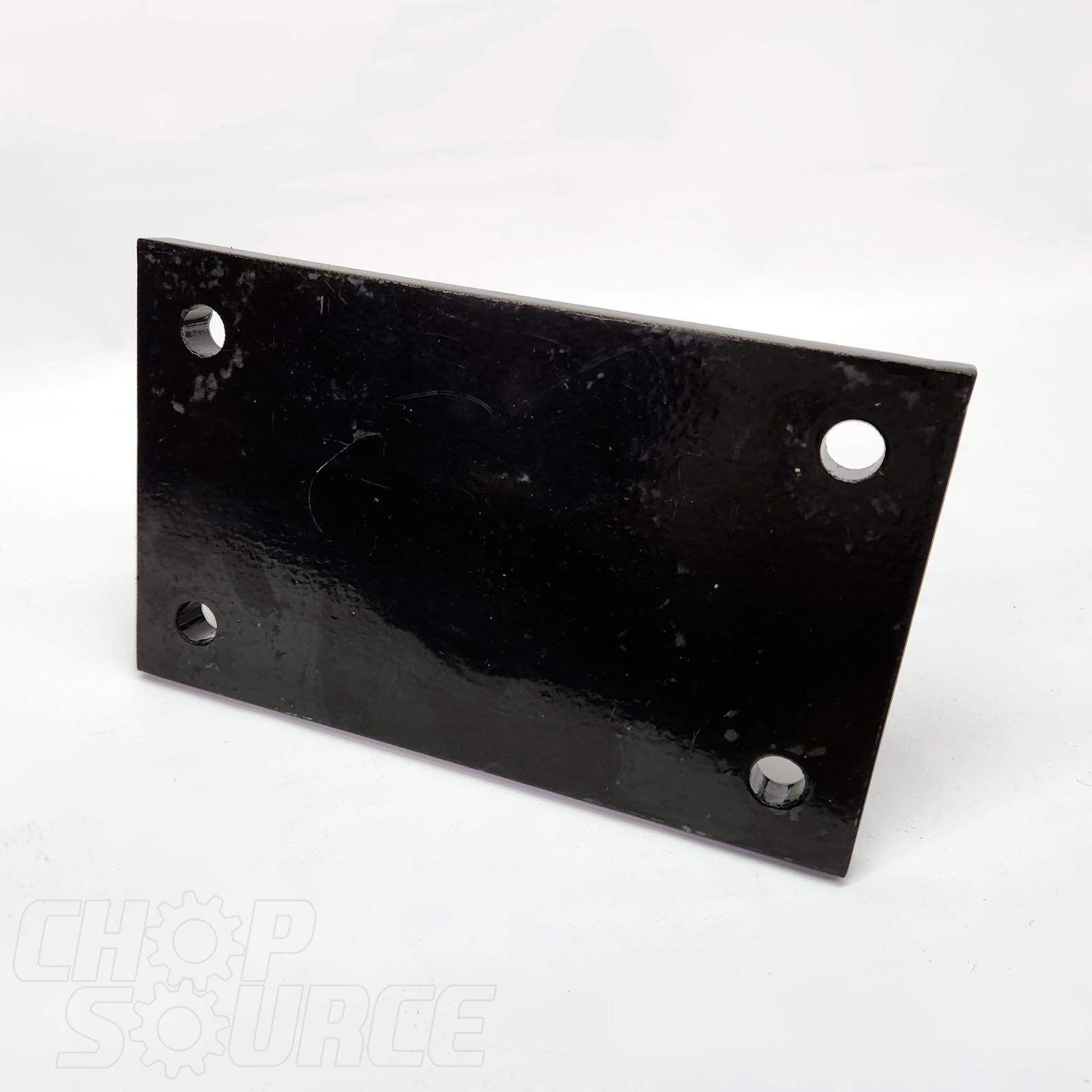

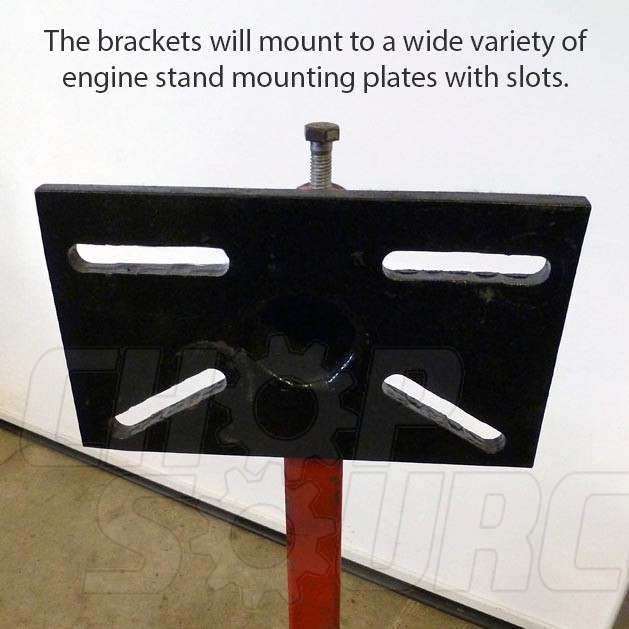

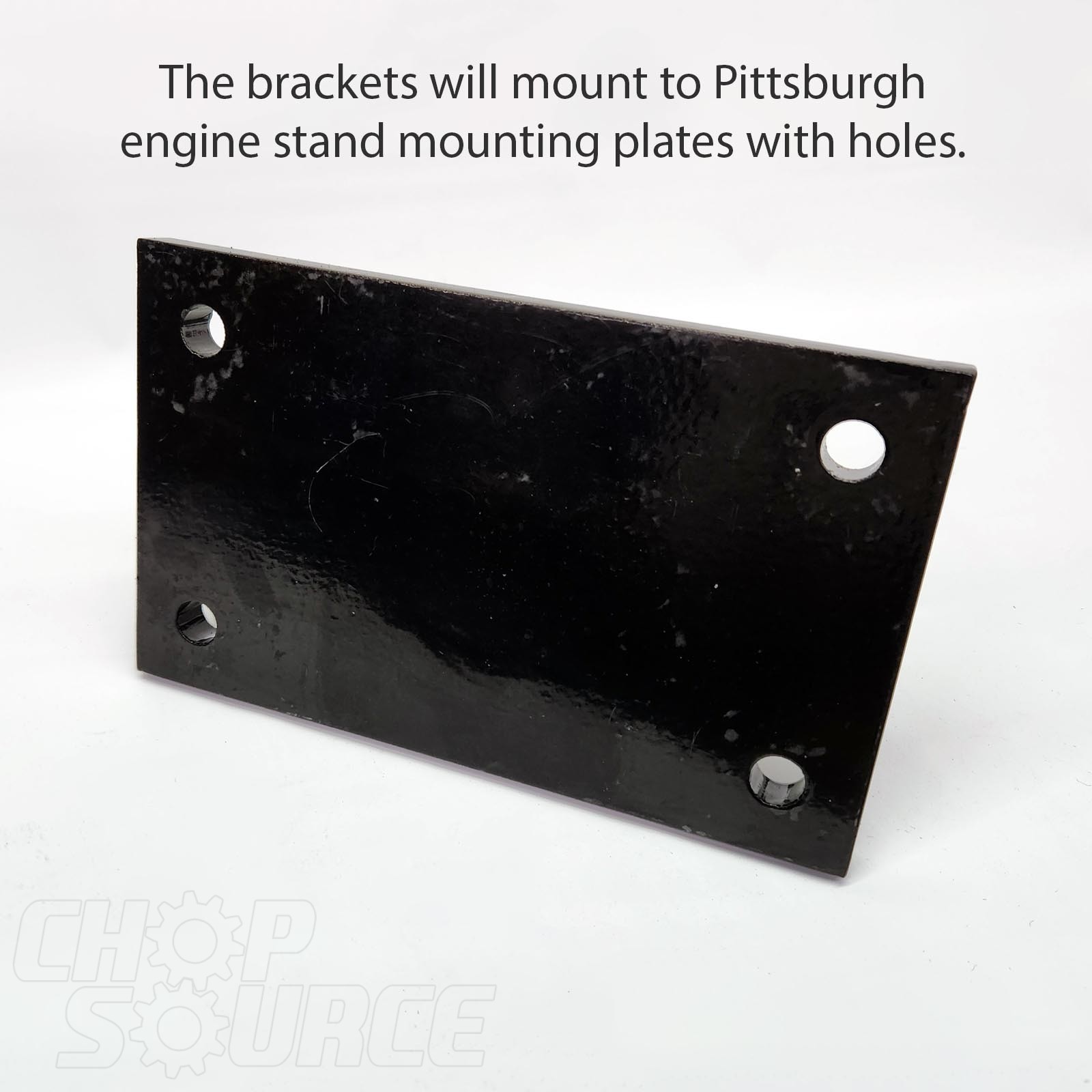

The brackets have slots and holes to ensure they'll work with almost every style of engine stand mounting plate (both slotted and the style with just 4 holes). If you are unsure whether this will work with your engine stand, feel free to text or email us pictures with some measurements, and we'll do our best to help.

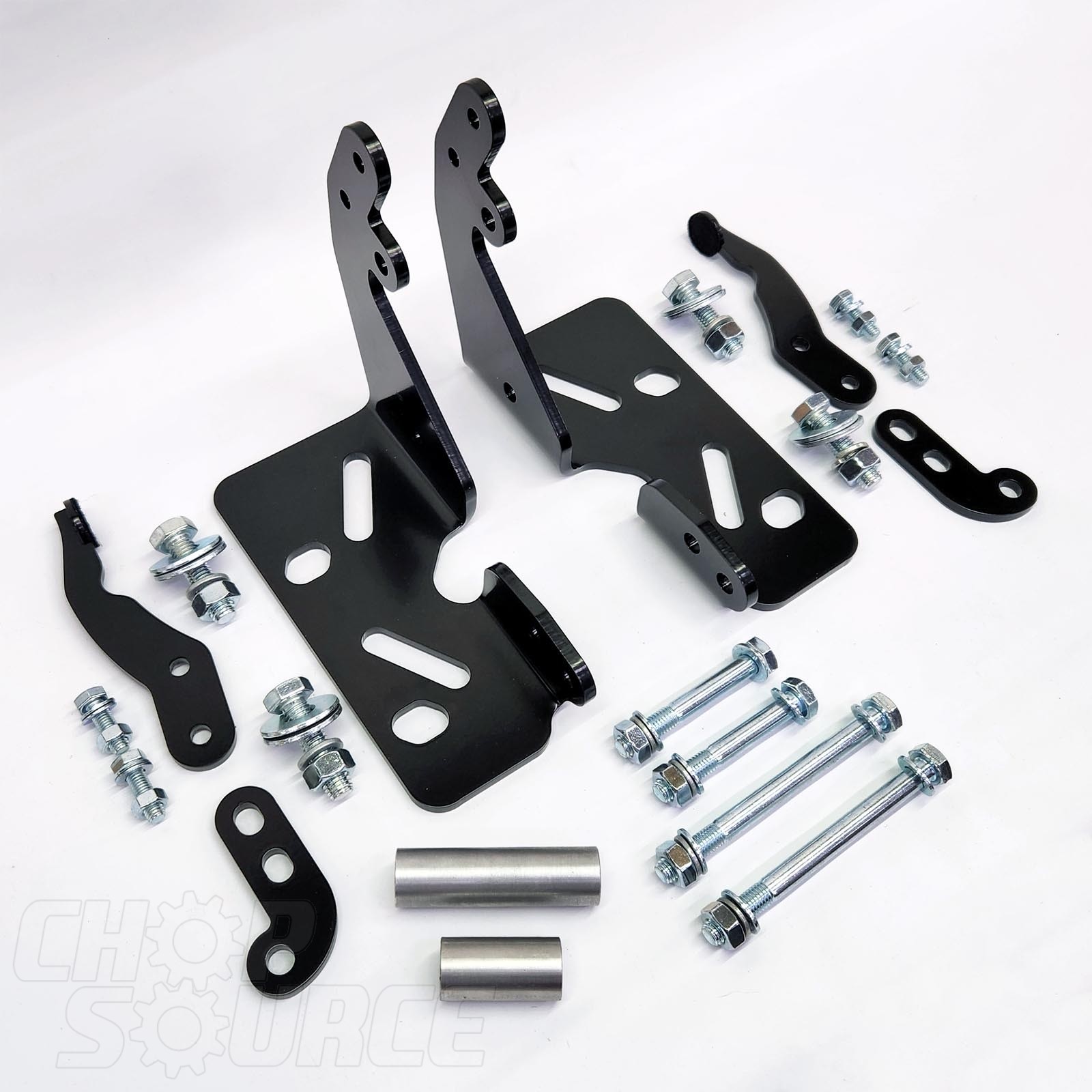

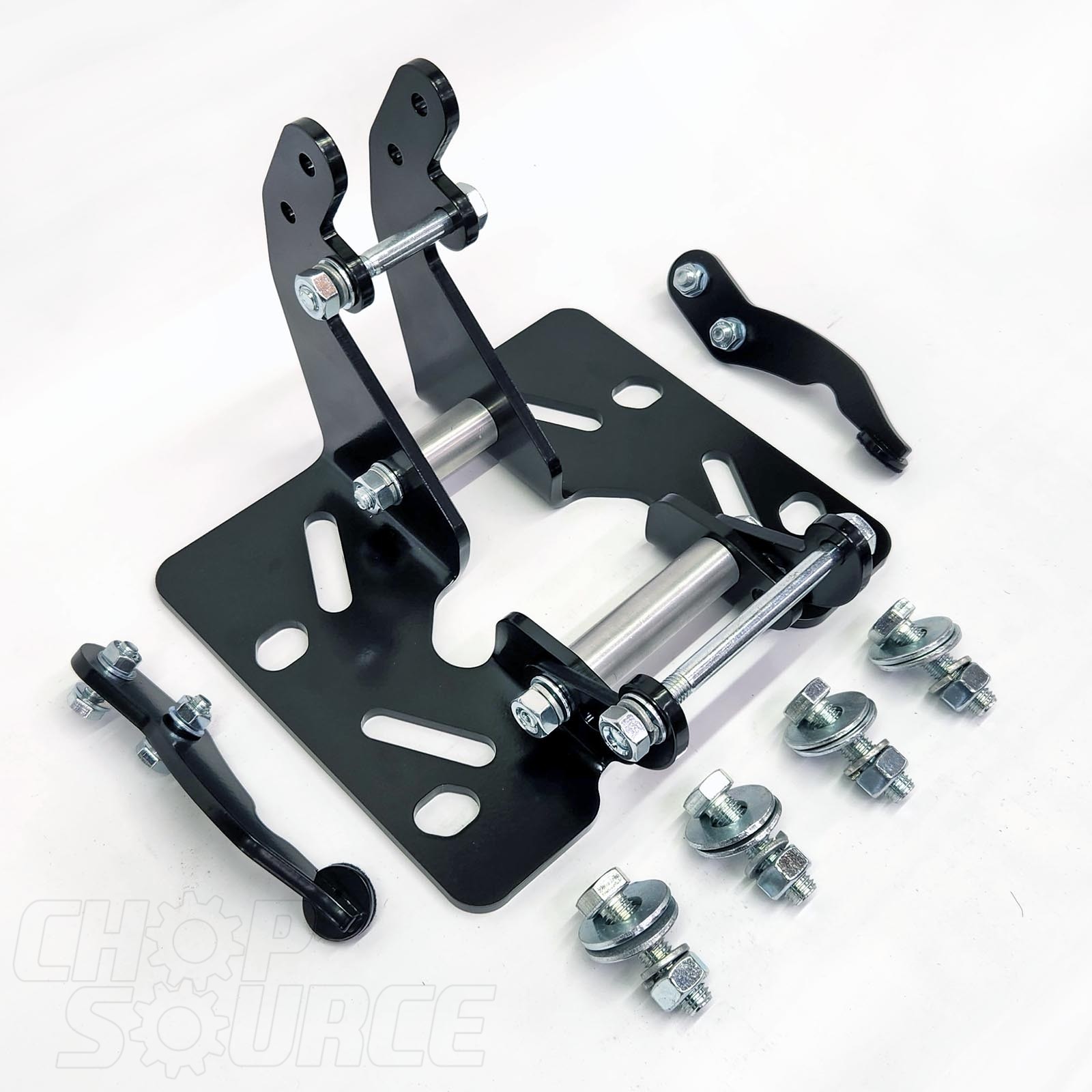

The brackets, links, and arms are powder-coated black, and it comes with all the metric hardware needed to mount your XS650 engine to a typical car engine stand. Includes left and right brackets, two lower links, two support arms with felt pads, two aluminum spacers, and metric hardware.
You will receive everything shown in the first picture only! You must use your own engine stand.
MADE IN THE USA
This item SHIPS FREE to the contiguous United States!
We ship all over the world frequently. Add the items you want to the shopping cart and use the shipping calculator in the cart to view rates.
Download the Deluxe Yamaha XS650 Engine Stand Bracket Assembly Instructions
The brackets work with all Yamaha XS650 engines from 1970 to 1983. Here is a partial list of the XS650 models:
1970 XS1
1971 XS1B
1971 XS2
1973 TX650
1974 TX650A
1975 XS650B
1976 XS650C
1977 XS650D
1978 XS650E
1978 XS650SE
1979 XS650F
1979 XS650SF
1979 XS650-2F
1980 XS650G
1980 XS650SG
1981 XS650H
1981 XS650SH
1982 XS650SJ
1983 XS650SK
Alternate spellings: XS-650, XS 650, XS-1, XS-2, TX-650, TX 650
